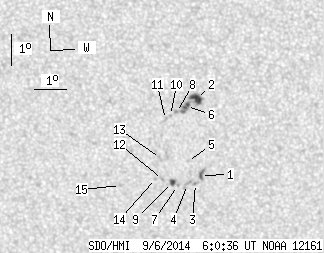

SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.60 | 39.82 | 6.19 | 21.38 | -15.08 | 148.20 | -3.25 | 171.79 | 0.3853 | -41.1 | -160.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.89 | 3.66 | 0.48 | 1.98 | -16.14 | 148.74 | -2.72 | 173.45 | 0.4011 | -1098.8 | -885.9 | |
| 6.43 | 9.02 | 3.41 | 4.79 | -13.62 | 148.65 | -2.81 | 172.39 | 0.3609 | 1151.9 | 808.2 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -16.40 | 148.58 | -2.88 | 173.15 | 0.4056 | -784.0 | -667.9 | |
| 0.00 | 3.66 | 0.00 | 1.98 | -16.44 | 148.33 | -3.13 | 172.57 | 0.4067 | -993.0 | -741.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.68 | 148.34 | -3.12 | 172.34 | 0.3946 | -542.0 | -398.1 | |
| 2.23 | 6.43 | 1.19 | 3.42 | -13.89 | 148.34 | -3.12 | 171.65 | 0.3658 | 1034.4 | 758.2 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.47 | 148.01 | -3.45 | 171.84 | 0.4079 | -601.0 | -673.6 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.08 | 148.02 | -3.44 | 170.91 | 0.3697 | 673.0 | 597.2 | |
| 2.05 | 3.66 | 1.11 | 1.98 | -16.38 | 147.85 | -3.60 | 171.44 | 0.4067 | -937.0 | -666.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.18 | 147.83 | -3.63 | 170.47 | 0.3718 | 733.0 | 599.5 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -14.31 | 147.67 | -3.78 | 170.12 | 0.3743 | 610.0 | 390.4 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -16.28 | 147.54 | -3.92 | 170.66 | 0.4059 | -720.0 | -625.1 | |
| 0.00 | 2.50 | 0.00 | 1.35 | -15.59 | 147.49 | -3.97 | 170.25 | 0.3951 | -447.0 | -419.2 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -16.25 | 147.32 | -4.14 | 170.14 | 0.4060 | -470.0 | -560.9 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.49 | 146.21 | -5.25 | 167.69 | 0.4132 | -700.0 | -459.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
