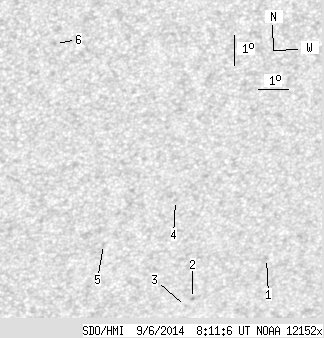

SDO HMI 2014-09-06 08:11:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.04 | 0.00 | 4.71 | -18.70 | 169.45 | 19.18 | 215.78 | 0.5327 | 547.0 | 437.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 08:11:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.92 | -20.09 | 173.12 | 22.85 | 219.03 | 0.5813 | 127.0 | 122.5 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -21.34 | 170.73 | 20.46 | 214.66 | 0.5747 | 606.0 | 557.4 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -21.60 | 170.52 | 20.26 | 214.12 | 0.5761 | 632.0 | 480.6 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -17.97 | 169.71 | 19.44 | 217.07 | 0.5274 | 448.0 | 328.1 | |
| 0.00 | 1.52 | 0.00 | 0.88 | -19.35 | 167.44 | 17.18 | 212.21 | 0.5248 | 708.0 | 476.3 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -12.66 | 165.32 | 15.05 | 217.01 | 0.4227 | 761.0 | 695.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
