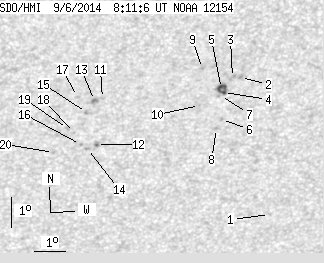

SDO HMI 2014-09-06 08:11:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 36.27 | 2.89 | 20.23 | -18.38 | 159.46 | 9.19 | 199.33 | 0.4601 | 5.6 | -15.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 08:11:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.68 | -22.03 | 163.19 | 12.92 | 203.10 | 0.5305 | 650.0 | 500.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -17.35 | 161.88 | 11.61 | 204.91 | 0.4579 | 799.0 | 641.4 | |
| 0.00 | 2.86 | 0.00 | 1.59 | -17.34 | 161.62 | 11.35 | 204.43 | 0.4562 | 636.0 | 643.2 | |
| 0.98 | 8.84 | 0.55 | 4.93 | -17.83 | 161.36 | 11.09 | 203.48 | 0.4615 | 741.2 | 682.6 | |
| 3.84 | -4.00 | 2.14 | -4.00 | -17.70 | 161.28 | 11.02 | 203.46 | 0.4591 | 992.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.74 | 161.35 | 11.08 | 202.67 | 0.4742 | 693.0 | 574.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.93 | 161.27 | 11.00 | 203.22 | 0.4623 | 356.0 | 421.1 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -19.04 | 161.21 | 10.94 | 202.16 | 0.4776 | 666.0 | 514.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.01 | 160.63 | 10.36 | 202.82 | 0.4454 | 707.0 | 537.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.25 | 160.61 | 10.34 | 201.70 | 0.4629 | 595.0 | 421.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -17.94 | 157.47 | 7.20 | 195.69 | 0.4429 | -717.0 | -523.2 | |
| 0.36 | 2.14 | 0.20 | 1.20 | -19.49 | 157.34 | 7.07 | 194.50 | 0.4656 | -696.5 | -471.3 | |
| 0.00 | 3.13 | 0.00 | 1.73 | -18.01 | 157.21 | 6.95 | 195.12 | 0.4428 | -962.0 | -784.4 | |
| 0.00 | 1.70 | 0.00 | 0.95 | -19.62 | 157.05 | 6.79 | 193.87 | 0.4664 | -712.0 | -605.6 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -18.40 | 156.97 | 6.71 | 194.39 | 0.4478 | -792.0 | -665.1 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -19.48 | 156.82 | 6.56 | 193.48 | 0.4635 | -723.0 | -635.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.86 | 156.67 | 6.40 | 194.06 | 0.4384 | -684.0 | -586.1 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.07 | 156.61 | 6.35 | 193.28 | 0.4566 | -737.0 | -681.2 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -18.93 | 156.38 | 6.12 | 192.89 | 0.4537 | -716.0 | -549.2 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -19.74 | 155.96 | 5.69 | 191.65 | 0.4645 | -637.0 | -532.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
