SDO HMI 2014-09-06 08:11:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.66 | 71.18 | 12.60 | 38.19 | -15.12 | 148.38 | -1.89 | 175.22 | 0.3834 | 152.7 | -323.8 | |
|
previous
or next observation for the same group /

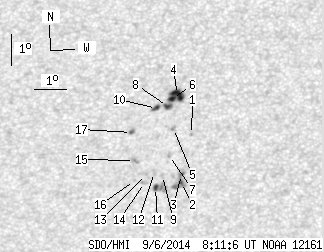

back to the solar disc SDO HMI 2014-09-06 08:11:06 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.77 | 149.18 | -1.09 | 177.19 | 0.3769 | -674.0 | -565.8 | |
| 1.34 | 14.38 | 0.72 | 7.78 | -16.35 | 148.85 | -1.41 | 176.61 | 0.4025 | -1014.4 | -742.3 | |
| 0.80 | -2.00 | 0.43 | -2.00 | -16.08 | 148.86 | -1.41 | 176.58 | 0.3983 | -1051.7 | 999999 | |
| 9.20 | 22.24 | 4.88 | 11.80 | -13.47 | 148.75 | -1.52 | 175.84 | 0.3561 | 1092.7 | 683.8 | |
| 0.00 | 2.41 | 0.00 | 1.29 | -14.58 | 148.62 | -1.65 | 175.71 | 0.3743 | 677.0 | 519.4 | |
| 3.84 | -4.00 | 2.04 | -4.00 | -13.60 | 148.59 | -1.67 | 175.44 | 0.3585 | 1037.9 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.30 | -15.46 | 148.48 | -1.78 | 175.56 | 0.3887 | -258.0 | -258.6 | |
| 3.04 | -4.00 | 1.61 | -4.00 | -13.86 | 148.44 | -1.83 | 175.08 | 0.3629 | 900.4 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.21 | -16.12 | 148.26 | -2.01 | 175.14 | 0.3995 | -549.0 | -517.3 | |
| 2.59 | 4.29 | 1.38 | 2.28 | -13.93 | 148.09 | -2.17 | 174.18 | 0.3645 | 852.0 | 586.7 | |
| 2.14 | 9.92 | 1.16 | 5.37 | -16.52 | 148.03 | -2.24 | 174.69 | 0.4062 | -864.5 | -719.6 | |
| 0.00 | 2.32 | 0.00 | 1.25 | -16.02 | 148.01 | -2.26 | 174.51 | 0.3983 | -897.0 | -640.5 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -16.09 | 147.75 | -2.51 | 173.92 | 0.3998 | -438.0 | -395.5 | |
| 0.00 | 2.86 | 0.00 | 1.55 | -16.35 | 147.69 | -2.58 | 173.84 | 0.4041 | -741.0 | -553.8 | |
| 0.00 | 3.22 | 0.00 | 1.73 | -15.63 | 147.38 | -2.88 | 172.89 | 0.3932 | -772.0 | -493.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -16.29 | 147.37 | -2.89 | 173.07 | 0.4037 | -683.0 | -548.6 | |
| 0.71 | 2.23 | 0.38 | 1.19 | -14.71 | 147.30 | -2.96 | 172.38 | 0.3787 | 796.9 | 522.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
