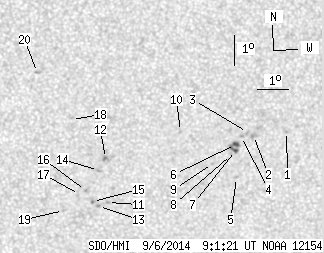

SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.59 | 33.96 | 1.45 | 18.88 | -17.91 | 159.48 | 9.67 | 200.57 | 0.4560 | 81.1 | 156.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.75 | -17.26 | 162.99 | 13.18 | 207.88 | 0.4675 | 649.0 | 576.6 | |
| 0.00 | 3.13 | 0.00 | 1.74 | -17.36 | 161.92 | 12.11 | 205.84 | 0.4614 | 849.0 | 612.1 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -17.25 | 161.72 | 11.91 | 205.57 | 0.4586 | 713.0 | 617.9 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -17.38 | 161.53 | 11.73 | 205.10 | 0.4592 | 840.0 | 625.9 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -18.75 | 161.46 | 11.66 | 203.70 | 0.4778 | 736.0 | 546.2 | |
| 1.61 | 7.77 | 0.90 | 4.34 | -17.64 | 161.36 | 11.55 | 204.52 | 0.4617 | 1025.3 | 785.4 | |
| 0.98 | -6.00 | 0.55 | -6.00 | -17.84 | 161.37 | 11.56 | 204.35 | 0.4646 | 766.9 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -17.97 | 161.25 | 11.44 | 204.01 | 0.4656 | 478.0 | 399.2 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.26 | 160.65 | 10.84 | 202.64 | 0.4660 | 564.0 | 433.4 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.16 | 159.56 | 9.75 | 201.47 | 0.4439 | 683.0 | 529.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -19.50 | 157.32 | 7.51 | 195.35 | 0.4674 | -968.0 | -830.9 | |
| 0.00 | 2.77 | 0.00 | 1.53 | -18.01 | 157.19 | 7.38 | 196.02 | 0.4446 | -994.0 | -832.5 | |
| 0.00 | 1.61 | 0.00 | 0.90 | -19.63 | 157.03 | 7.23 | 194.72 | 0.4682 | -711.0 | -597.3 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.41 | 156.98 | 7.17 | 195.34 | 0.4498 | -832.0 | -689.1 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -19.45 | 156.83 | 7.02 | 194.42 | 0.4648 | -760.0 | -646.9 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -19.08 | 156.59 | 6.78 | 194.16 | 0.4582 | -798.0 | -691.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.21 | 156.40 | 6.59 | 193.71 | 0.4595 | -715.0 | -590.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -16.70 | 156.06 | 6.25 | 194.44 | 0.4200 | 374.0 | 447.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.74 | 155.91 | 6.10 | 192.45 | 0.4658 | -664.0 | -580.1 | |
| 0.00 | 2.23 | 0.00 | 1.20 | -15.13 | 154.94 | 5.13 | 192.80 | 0.3915 | 788.0 | 618.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
