SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.17 | 233.68 | 52.16 | 179.04 | -19.51 | 107.19 | -42.62 | 123.27 | 0.7656 | 681.9 | 332.7 | |
|
previous
or next observation for the same group /

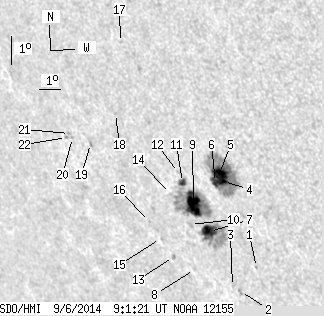

back to the solar disc SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.68 | -21.71 | 108.83 | -40.97 | 126.77 | 0.7628 | -359.0 | -372.7 | |
| 0.00 | 2.32 | 0.00 | 1.82 | -22.62 | 107.80 | -42.01 | 127.15 | 0.7773 | 750.0 | 678.5 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -22.48 | 107.50 | -42.31 | 126.81 | 0.7790 | 714.0 | 660.0 | |
| 4.65 | 86.83 | 3.47 | 64.73 | -18.85 | 108.35 | -41.46 | 123.19 | 0.7510 | 952.3 | 473.4 | |
| 13.76 | -4.00 | 10.27 | -4.00 | -18.59 | 108.26 | -41.55 | 122.83 | 0.7504 | 1043.3 | 999999 | |
| 5.72 | -4.00 | 4.30 | -4.00 | -18.91 | 107.99 | -41.82 | 123.05 | 0.7548 | 579.0 | 999999 | |
| 15.28 | 45.38 | 11.86 | 35.16 | -20.63 | 107.16 | -42.65 | 124.53 | 0.7719 | 735.8 | 308.2 | |
| 0.00 | 1.07 | 0.00 | 0.86 | -22.03 | 105.97 | -43.84 | 125.41 | 0.7900 | 315.0 | 275.0 | |
| 25.28 | 80.75 | 19.57 | 62.57 | -19.76 | 106.76 | -43.05 | 123.30 | 0.7710 | 840.9 | 267.1 | |
| 0.00 | 2.68 | 0.00 | 2.10 | -20.47 | 106.38 | -43.43 | 123.89 | 0.7781 | 442.0 | 285.5 | |
| 3.48 | -9.00 | 2.69 | -9.00 | -19.04 | 106.51 | -43.30 | 122.34 | 0.7695 | 707.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.03 | -18.72 | 106.44 | -43.37 | 121.92 | 0.7685 | 555.0 | 404.7 | |
| 0.00 | 1.79 | 0.00 | 1.45 | -21.66 | 105.16 | -44.65 | 124.54 | 0.7951 | 582.0 | 458.0 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -19.47 | 105.83 | -43.98 | 122.45 | 0.7780 | -75.0 | 36.7 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -21.09 | 104.79 | -45.02 | 123.69 | 0.7955 | 558.0 | 484.5 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -20.54 | 104.49 | -45.32 | 122.92 | 0.7954 | 529.0 | 372.1 | |
| 0.00 | 1.34 | 0.00 | 1.02 | -14.58 | 105.10 | -44.71 | 116.29 | 0.7617 | 533.0 | 435.7 | |
| 0.00 | 0.98 | 0.00 | 0.78 | -16.98 | 104.18 | -45.63 | 118.68 | 0.7815 | -81.0 | -147.5 | |
| 0.00 | 2.05 | 0.00 | 1.69 | -18.11 | 102.65 | -47.16 | 119.22 | 0.8008 | -238.0 | -280.2 | |
| 0.00 | 1.07 | 0.00 | 0.90 | -17.99 | 101.84 | -47.97 | 118.69 | 0.8076 | -320.0 | -391.8 | |
| 0.00 | 1.43 | 0.00 | 1.20 | -17.87 | 101.74 | -48.07 | 118.50 | 0.8079 | -527.0 | -430.2 | |
| 0.00 | 1.25 | 0.00 | 1.05 | -18.02 | 101.54 | -48.27 | 118.58 | 0.8104 | -492.0 | -459.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
