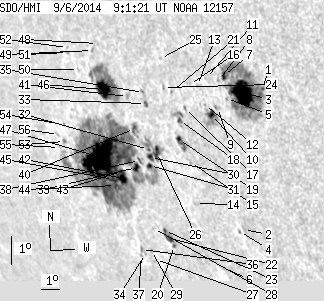

SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 164.72 | 820.99 | 156.15 | 783.21 | -13.75 | 94.57 | -55.24 | 110.98 | 0.8552 | -154.8 | -114.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.63 | 157.66 | 0.50 | 127.56 | -11.35 | 101.73 | -48.08 | 110.84 | 0.7828 | -330.3 | 311.2 | |
| 0.00 | 1.43 | 0.00 | 1.24 | -16.10 | 99.46 | -50.35 | 115.46 | 0.8216 | -500.0 | -412.6 | |
| 35.02 | -1.00 | 28.36 | -1.00 | -11.57 | 100.74 | -49.07 | 110.71 | 0.7935 | 946.4 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.01 | -16.18 | 99.23 | -50.58 | 115.47 | 0.8239 | -212.0 | -303.8 | |
| 0.00 | 1.34 | 0.00 | 1.11 | -11.84 | 99.91 | -49.90 | 110.71 | 0.8025 | 236.0 | 197.5 | |
| 0.00 | 0.80 | 0.00 | 0.73 | -17.52 | 97.95 | -51.86 | 116.44 | 0.8397 | -85.0 | -209.7 | |
| 2.41 | -1.00 | 1.98 | -1.00 | -11.11 | 99.95 | -49.86 | 109.85 | 0.7998 | 604.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.11 | -11.30 | 99.66 | -50.15 | 109.97 | 0.8032 | 148.0 | 191.1 | |
| 0.00 | 2.41 | 0.00 | 2.02 | -12.18 | 99.39 | -50.42 | 110.91 | 0.8087 | 198.0 | 338.4 | |
| 4.38 | 18.94 | 3.70 | 16.07 | -12.44 | 99.02 | -50.79 | 111.07 | 0.8130 | 642.6 | 225.6 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -11.30 | 99.03 | -50.78 | 109.73 | 0.8093 | 159.0 | 220.7 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -12.15 | 98.76 | -51.05 | 110.63 | 0.8146 | 513.0 | 466.2 | |
| 0.00 | 0.89 | 0.00 | 0.76 | -11.56 | 98.57 | -51.24 | 109.87 | 0.8145 | 209.0 | 287.7 | |
| 0.00 | 0.98 | 0.00 | 0.89 | -15.48 | 97.24 | -52.56 | 113.87 | 0.8389 | 154.0 | 261.0 | |
| 0.00 | 0.89 | 0.00 | 0.79 | -14.13 | 97.46 | -52.35 | 112.43 | 0.8328 | 528.0 | 536.9 | |
| 0.00 | 0.98 | 0.00 | 0.84 | -11.57 | 98.16 | -51.64 | 109.74 | 0.8184 | 368.0 | 359.4 | |
| 0.00 | 1.79 | 0.00 | 1.56 | -12.38 | 97.69 | -52.12 | 110.51 | 0.8252 | 224.0 | 195.2 | |
| 1.16 | 9.38 | 1.02 | 8.28 | -12.80 | 97.31 | -52.50 | 110.85 | 0.8300 | 558.6 | 171.6 | |
| 2.05 | 10.72 | 1.83 | 9.54 | -13.44 | 97.06 | -52.74 | 111.49 | 0.8341 | 522.0 | 436.5 | |
| 0.63 | 10.27 | 0.60 | 9.88 | -17.03 | 95.51 | -54.30 | 114.92 | 0.8582 | 236.0 | 241.3 | |
| 0.00 | 1.07 | 0.00 | 0.94 | -11.90 | 97.17 | -52.64 | 109.76 | 0.8286 | 202.0 | 225.0 | |
| 4.02 | -20.00 | 3.87 | -20.00 | -16.82 | 95.33 | -54.48 | 114.62 | 0.8591 | 466.1 | 999999 | |
| 1.25 | -20.00 | 1.20 | -20.00 | -16.57 | 95.16 | -54.65 | 114.29 | 0.8597 | 372.6 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.43 | -11.81 | 96.78 | -53.03 | 109.52 | 0.8319 | 394.0 | 308.4 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -10.88 | 96.88 | -52.93 | 108.48 | 0.8283 | 289.0 | 247.8 | |
| 5.00 | 25.28 | 4.64 | 23.55 | -13.99 | 95.72 | -54.09 | 111.63 | 0.8475 | -156.1 | -127.8 | |
| 0.00 | 0.36 | 0.00 | 0.36 | -17.63 | 94.18 | -55.62 | 115.08 | 0.8705 | -76.0 | -82.0 | |
| 0.00 | 0.98 | 0.00 | 0.96 | -16.57 | 94.55 | -55.26 | 114.07 | 0.8646 | -273.0 | -266.0 | |
| 0.00 | 1.79 | 0.00 | 1.78 | -17.34 | 94.09 | -55.72 | 114.74 | 0.8704 | -174.0 | -153.1 | |
| 2.86 | -26.00 | 2.68 | -26.00 | -14.20 | 95.33 | -54.48 | 111.72 | 0.8514 | 550.6 | 999999 | |
| 2.05 | 476.30 | 1.94 | 480.94 | -14.47 | 95.17 | -54.63 | 111.97 | 0.8535 | 547.2 | -222.1 | |
| 0.54 | -26.00 | 0.50 | -26.00 | -13.94 | 95.31 | -54.50 | 111.42 | 0.8508 | 309.2 | 999999 | |
| 1.25 | 2.68 | 1.15 | 2.46 | -12.44 | 95.65 | -54.16 | 109.84 | 0.8437 | 326.1 | 214.4 | |
| 0.00 | 1.07 | 0.00 | 1.08 | -17.48 | 93.68 | -56.13 | 114.75 | 0.8740 | -512.0 | -458.9 | |
| 0.00 | 2.68 | 0.00 | 2.45 | -12.09 | 95.65 | -54.16 | 109.45 | 0.8427 | 210.0 | 283.9 | |
| 0.00 | 1.88 | 0.00 | 1.90 | -17.37 | 93.51 | -56.30 | 114.56 | 0.8750 | -561.0 | -501.2 | |
| 0.00 | 0.98 | 0.00 | 1.00 | -17.58 | 93.41 | -56.40 | 114.75 | 0.8763 | -152.0 | -206.2 | |
| 0.89 | -31.00 | 0.85 | -31.00 | -14.36 | 94.67 | -55.14 | 111.67 | 0.8574 | 331.0 | 999999 | |
| 4.11 | -31.00 | 3.97 | -31.00 | -14.61 | 94.41 | -55.40 | 111.86 | 0.8603 | 541.6 | 999999 | |
| 2.50 | -31.00 | 2.37 | -31.00 | -13.33 | 94.77 | -55.04 | 110.55 | 0.8537 | -737.4 | 999999 | |
| 0.00 | 2.41 | 0.00 | 2.26 | -12.31 | 94.72 | -55.09 | 109.39 | 0.8514 | -131.0 | -104.0 | |
| 4.91 | -31.00 | 4.88 | -31.00 | -15.07 | 93.50 | -56.31 | 112.05 | 0.8688 | 635.1 | 999999 | |
| 0.27 | -31.00 | 0.27 | -31.00 | -14.84 | 93.48 | -56.33 | 111.79 | 0.8684 | 369.7 | 999999 | |
| 1.70 | -31.00 | 1.72 | -31.00 | -15.36 | 92.92 | -56.89 | 112.17 | 0.8741 | 251.0 | 999999 | |
| 3.48 | -31.00 | 3.53 | -31.00 | -15.17 | 92.88 | -56.92 | 111.95 | 0.8739 | -496.3 | 999999 | |
| 16.88 | 68.07 | 16.40 | 65.73 | -12.23 | 93.42 | -56.39 | 108.88 | 0.8622 | -740.5 | -396.0 | |
| 66.10 | -31.00 | 67.51 | -31.00 | -14.51 | 92.40 | -57.41 | 111.07 | 0.8761 | -825.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.20 | -10.76 | 93.54 | -56.27 | 107.27 | 0.8576 | -191.0 | -233.4 | |
| 0.00 | 1.79 | 0.00 | 1.73 | -11.02 | 93.18 | -56.63 | 107.45 | 0.8613 | -420.0 | -369.4 | |
| 0.00 | 1.25 | 0.00 | 1.25 | -11.73 | 92.15 | -57.65 | 107.94 | 0.8714 | -154.0 | -186.6 | |
| 0.00 | 1.25 | 0.00 | 1.27 | -11.25 | 91.67 | -58.14 | 107.26 | 0.8742 | -441.0 | -363.2 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -11.09 | 91.72 | -58.08 | 107.09 | 0.8734 | -358.0 | -350.7 | |
| 0.63 | 2.23 | 0.68 | 2.42 | -14.22 | 90.36 | -59.45 | 110.12 | 0.8909 | -266.7 | -179.1 | |
| 0.00 | 1.34 | 0.00 | 1.43 | -13.66 | 90.54 | -59.27 | 109.56 | 0.8883 | -275.0 | -225.3 | |
| 0.00 | 0.71 | 0.00 | 0.78 | -14.46 | 89.94 | -59.87 | 110.25 | 0.8945 | 269.0 | 209.0 | |
| 0.00 | 1.07 | 0.00 | 1.17 | -14.03 | 90.07 | -59.74 | 109.83 | 0.8926 | -68.0 | -69.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
