SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.04 | 69.68 | 12.80 | 37.30 | -14.94 | 148.44 | -1.37 | 176.51 | 0.3798 | 148.8 | -233.3 | |
|
previous
or next observation for the same group /

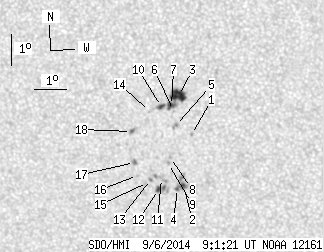

back to the solar disc SDO HMI 2014-09-06 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.67 | -14.74 | 149.18 | -0.63 | 178.36 | 0.3760 | -875.0 | -655.0 | |
| 1.97 | 10.63 | 1.06 | 5.75 | -16.41 | 148.92 | -0.89 | 177.87 | 0.4031 | -1035.1 | -884.2 | |
| 12.42 | 28.14 | 6.58 | 14.92 | -13.47 | 148.78 | -1.03 | 177.16 | 0.3556 | 1138.7 | 686.3 | |
| 0.89 | -2.00 | 0.48 | -2.00 | -16.51 | 148.73 | -1.08 | 177.43 | 0.4048 | -903.6 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.38 | -14.45 | 148.68 | -1.13 | 177.04 | 0.3715 | 885.0 | 716.0 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -13.96 | 148.62 | -1.19 | 176.81 | 0.3637 | 298.0 | 334.8 | |
| 3.57 | -3.00 | 1.90 | -3.00 | -13.80 | 148.56 | -1.25 | 176.62 | 0.3611 | 932.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -15.49 | 148.51 | -1.30 | 176.77 | 0.3886 | -447.0 | -369.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -15.69 | 148.45 | -1.36 | 176.64 | 0.3918 | -924.0 | -759.2 | |
| 2.23 | -3.00 | 1.19 | -3.00 | -13.83 | 148.24 | -1.56 | 175.78 | 0.3620 | 844.5 | 999999 | |
| 0.00 | 5.54 | 0.00 | 2.99 | -16.18 | 148.22 | -1.58 | 176.18 | 0.4000 | -901.0 | -799.1 | |
| 1.70 | 8.04 | 0.92 | 4.35 | -16.55 | 148.13 | -1.68 | 176.01 | 0.4059 | -890.3 | -809.0 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -16.22 | 147.88 | -1.93 | 175.35 | 0.4010 | -949.0 | -830.7 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -13.99 | 147.87 | -1.94 | 174.82 | 0.3651 | 664.0 | 534.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -16.32 | 147.78 | -2.03 | 175.15 | 0.4027 | -195.0 | -454.0 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -16.09 | 147.47 | -2.34 | 174.34 | 0.3995 | -686.0 | -582.2 | |
| 0.63 | 2.77 | 0.34 | 1.49 | -15.66 | 147.38 | -2.43 | 174.02 | 0.3928 | -812.3 | -486.0 | |
| 0.63 | 2.95 | 0.33 | 1.58 | -14.64 | 147.30 | -2.51 | 173.52 | 0.3766 | 784.4 | 543.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
