SDO HMI 2014-09-06 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166.41 | 782.76 | 155.27 | 737.98 | -13.78 | 94.52 | -54.74 | 111.18 | 0.8511 | -133.1 | -129.3 | |
|
previous
or next observation for the same group /

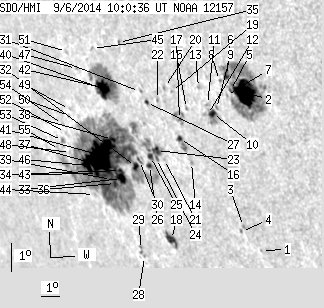

back to the solar disc SDO HMI 2014-09-06 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.76 | -16.73 | 100.08 | -49.19 | 116.69 | 0.8135 | -156.0 | -245.9 | |
| 37.69 | 145.59 | 30.15 | 116.50 | -11.58 | 100.82 | -48.44 | 110.97 | 0.7873 | 888.5 | 281.4 | |
| 0.00 | 1.34 | 0.00 | 1.14 | -16.01 | 99.45 | -49.82 | 115.59 | 0.8164 | -338.0 | -379.9 | |
| 0.00 | 1.25 | 0.00 | 1.07 | -16.19 | 99.29 | -49.98 | 115.73 | 0.8185 | -280.0 | -369.4 | |
| 0.63 | -2.00 | 0.51 | -2.00 | -11.58 | 100.12 | -49.15 | 110.69 | 0.7944 | 202.4 | 999999 | |
| 2.59 | -2.00 | 2.10 | -2.00 | -11.11 | 100.04 | -49.23 | 110.10 | 0.7936 | 598.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.24 | -11.76 | 99.88 | -49.38 | 110.81 | 0.7973 | 276.0 | 208.6 | |
| 0.00 | 1.07 | 0.00 | 0.88 | -11.31 | 99.66 | -49.61 | 110.19 | 0.7980 | 305.0 | 252.8 | |
| 0.00 | 1.70 | 0.00 | 1.41 | -12.23 | 99.28 | -49.99 | 111.14 | 0.8047 | 511.0 | 505.2 | |
| 3.22 | 11.97 | 2.69 | 10.01 | -12.42 | 99.04 | -50.23 | 111.26 | 0.8076 | 688.5 | 399.4 | |
| 0.00 | 1.70 | 0.00 | 1.42 | -12.15 | 98.87 | -50.40 | 110.88 | 0.8084 | 549.0 | 399.9 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -12.48 | 98.78 | -50.49 | 111.23 | 0.8103 | 213.0 | 193.4 | |
| 0.00 | 1.88 | 0.00 | 1.57 | -11.64 | 98.56 | -50.71 | 110.16 | 0.8097 | 388.0 | 321.7 | |
| 0.00 | 1.61 | 0.00 | 1.41 | -14.14 | 97.49 | -51.78 | 112.65 | 0.8277 | 516.0 | 453.6 | |
| 0.00 | 1.07 | 0.00 | 0.92 | -12.39 | 97.77 | -51.50 | 110.74 | 0.8195 | 108.0 | 184.9 | |
| 1.88 | 7.32 | 1.65 | 6.44 | -13.41 | 97.11 | -52.16 | 111.67 | 0.8287 | 544.9 | 545.0 | |
| 0.45 | 9.56 | 0.39 | 8.33 | -12.78 | 97.30 | -51.97 | 111.02 | 0.8251 | 540.6 | 175.2 | |
| 6.79 | 9.91 | 6.42 | 9.38 | -16.85 | 95.44 | -53.83 | 114.90 | 0.8539 | 460.7 | 255.4 | |
| 0.00 | 0.98 | 0.00 | 0.85 | -11.91 | 97.14 | -52.12 | 109.95 | 0.8238 | 373.0 | 295.4 | |
| 0.00 | 1.96 | 0.00 | 1.72 | -11.82 | 96.81 | -52.45 | 109.73 | 0.8266 | 339.0 | 251.2 | |
| 0.00 | 1.25 | 0.00 | 1.14 | -14.19 | 96.08 | -53.19 | 112.18 | 0.8403 | 486.0 | 432.2 | |
| 0.00 | 1.34 | 0.00 | 1.19 | -12.25 | 96.33 | -52.93 | 110.05 | 0.8323 | 9.0 | 11.9 | |
| 5.09 | 488.29 | 4.65 | 482.97 | -13.94 | 95.75 | -53.52 | 111.77 | 0.8424 | -346.6 | -229.8 | |
| 1.07 | -23.00 | 0.98 | -23.00 | -14.20 | 95.65 | -53.61 | 112.03 | 0.8440 | 492.5 | 999999 | |
| 2.23 | -23.00 | 2.07 | -23.00 | -14.17 | 95.35 | -53.92 | 111.89 | 0.8466 | 585.9 | 999999 | |
| 2.05 | -23.00 | 1.91 | -23.00 | -14.48 | 95.18 | -54.08 | 112.17 | 0.8488 | 612.9 | 999999 | |
| 0.89 | 2.14 | 0.81 | 1.93 | -12.41 | 95.71 | -53.55 | 110.02 | 0.8383 | 201.1 | 211.6 | |
| 0.00 | 0.98 | 0.00 | 0.98 | -17.60 | 93.61 | -55.65 | 115.04 | 0.8706 | -536.0 | -543.4 | |
| 0.00 | 2.50 | 0.00 | 2.50 | -17.38 | 93.55 | -55.72 | 114.78 | 0.8705 | -326.0 | -418.4 | |
| 0.98 | -23.00 | 0.93 | -23.00 | -14.37 | 94.68 | -54.58 | 111.87 | 0.8527 | 360.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -12.09 | 95.44 | -53.83 | 109.56 | 0.8398 | 484.0 | 466.5 | |
| 4.20 | -23.00 | 3.99 | -23.00 | -14.59 | 94.38 | -54.88 | 112.02 | 0.8559 | 522.3 | 999999 | |
| 5.36 | -23.00 | 5.25 | -23.00 | -15.08 | 93.42 | -55.85 | 112.22 | 0.8652 | 508.7 | 999999 | |
| 1.16 | -23.00 | 1.13 | -23.00 | -14.82 | 93.47 | -55.80 | 111.95 | 0.8641 | 141.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.30 | -10.61 | 94.75 | -54.52 | 107.64 | 0.8420 | 158.0 | 153.6 | |
| 3.13 | -23.00 | 3.11 | -23.00 | -15.29 | 92.99 | -56.27 | 112.30 | 0.8691 | 233.0 | 999999 | |
| 1.43 | -23.00 | 1.41 | -23.00 | -14.82 | 93.19 | -56.08 | 111.85 | 0.8663 | -470.8 | 999999 | |
| 2.77 | -23.00 | 2.69 | -23.00 | -13.83 | 93.40 | -55.87 | 110.83 | 0.8620 | -891.8 | 999999 | |
| 0.27 | -23.00 | 0.27 | -23.00 | -15.18 | 92.81 | -56.46 | 112.12 | 0.8703 | -769.3 | 999999 | |
| 5.18 | 65.65 | 4.93 | 62.48 | -12.24 | 93.67 | -55.60 | 109.14 | 0.8556 | -909.1 | -385.3 | |
| 55.02 | -23.00 | 55.06 | -23.00 | -14.44 | 92.54 | -56.73 | 111.22 | 0.8705 | -858.9 | 999999 | |
| 11.97 | -40.00 | 11.47 | -40.00 | -12.18 | 93.36 | -55.91 | 108.97 | 0.8581 | -685.0 | 999999 | |
| 2.23 | -23.00 | 2.28 | -23.00 | -15.07 | 92.05 | -57.22 | 111.75 | 0.8760 | -866.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.30 | -15.80 | 91.55 | -57.72 | 112.38 | 0.8816 | -240.0 | -269.1 | |
| 0.00 | 1.52 | 0.00 | 1.45 | -10.96 | 93.23 | -56.03 | 107.56 | 0.8561 | -366.0 | -376.2 | |
| 7.59 | -23.00 | 7.85 | -23.00 | -14.87 | 91.55 | -57.72 | 111.36 | 0.8793 | -256.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.79 | -11.71 | 92.10 | -57.17 | 108.06 | 0.8674 | -293.0 | -252.4 | |
| 0.00 | 1.61 | 0.00 | 1.70 | -14.55 | 90.67 | -58.59 | 110.73 | 0.8852 | -60.0 | -47.3 | |
| 0.00 | 0.98 | 0.00 | 1.01 | -13.11 | 91.19 | -58.07 | 109.33 | 0.8779 | -324.0 | -177.6 | |
| 0.00 | 0.98 | 0.00 | 1.02 | -13.32 | 91.06 | -58.21 | 109.52 | 0.8795 | -153.0 | -161.0 | |
| 0.00 | 1.43 | 0.00 | 1.43 | -11.22 | 91.68 | -57.59 | 107.39 | 0.8697 | -473.0 | -410.7 | |
| 0.00 | 0.71 | 0.00 | 0.75 | -13.91 | 90.64 | -58.63 | 110.03 | 0.8840 | -186.0 | -212.0 | |
| 0.54 | 2.50 | 0.57 | 2.66 | -14.20 | 90.34 | -58.93 | 110.25 | 0.8870 | -291.0 | -179.0 | |
| 0.00 | 0.80 | 0.00 | 0.84 | -13.66 | 90.56 | -58.71 | 109.74 | 0.8841 | -225.0 | -205.0 | |
| 0.00 | 4.29 | 0.00 | 4.62 | -14.52 | 90.01 | -59.25 | 110.50 | 0.8901 | 281.0 | 221.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
