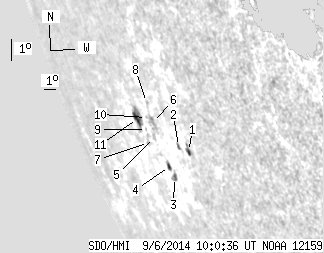

SDO HMI 2014-09-06 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.49 | 40.74 | 15.28 | 72.53 | -20.36 | 79.52 | -69.74 | 113.70 | 0.9616 | -171.9 | -133.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.79 | 4.38 | 2.76 | 6.77 | -20.57 | 82.36 | -66.90 | 114.63 | 0.9488 | 305.4 | 312.3 | |
| 0.00 | 2.68 | 0.00 | 4.30 | -20.50 | 81.58 | -67.68 | 114.35 | 0.9525 | 187.0 | 175.4 | |
| 0.00 | 3.75 | 0.00 | 6.63 | -21.73 | 80.00 | -69.26 | 115.19 | 0.9613 | 459.0 | 350.3 | |
| 1.70 | 3.04 | 3.01 | 5.39 | -21.37 | 79.92 | -69.35 | 114.81 | 0.9613 | 126.6 | 119.7 | |
| 0.00 | 2.59 | 0.00 | 4.64 | -20.46 | 79.46 | -69.81 | 113.78 | 0.9622 | -383.0 | -400.1 | |
| 0.00 | 6.43 | 0.00 | 11.23 | -19.92 | 79.82 | -69.45 | 113.32 | 0.9599 | -261.0 | -298.0 | |
| 0.00 | 1.25 | 0.00 | 2.37 | -20.73 | 78.59 | -70.68 | 113.85 | 0.9661 | -259.0 | -306.6 | |
| 0.00 | 0.80 | 0.00 | 1.38 | -19.25 | 79.91 | -69.36 | 112.67 | 0.9587 | -122.0 | -185.2 | |
| 0.00 | 0.63 | 0.00 | 1.15 | -20.27 | 78.89 | -70.37 | 113.45 | 0.9643 | -341.0 | -376.7 | |
| 0.00 | 0.27 | 0.00 | 0.48 | -19.81 | 79.36 | -69.91 | 113.10 | 0.9618 | -539.0 | -510.0 | |
| 5.00 | 14.92 | 9.51 | 28.19 | -19.97 | 78.32 | -70.95 | 113.02 | 0.9664 | -417.1 | -287.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
