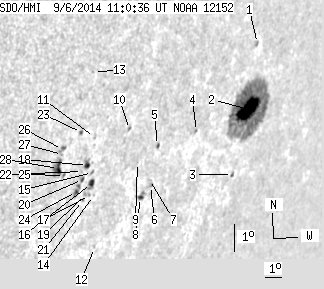

SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.07 | 223.17 | 39.83 | 245.70 | -14.55 | 208.49 | 59.77 | 249.55 | 0.8929 | 203.3 | 69.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 2.51 | -12.18 | 209.96 | 61.24 | 252.60 | 0.8998 | 575.0 | 488.0 | |
| 24.47 | 162.26 | 28.41 | 188.95 | -14.32 | 210.30 | 61.58 | 250.40 | 0.9064 | 716.2 | 145.1 | |
| 0.00 | 1.88 | 0.00 | 2.23 | -16.41 | 210.31 | 61.59 | 248.18 | 0.9106 | 374.0 | 249.4 | |
| 0.00 | 1.07 | 0.00 | 1.13 | -14.67 | 207.18 | 58.46 | 249.09 | 0.8845 | 485.0 | 394.7 | |
| 0.54 | 1.79 | 0.53 | 1.77 | -14.88 | 204.99 | 56.27 | 248.15 | 0.8680 | -223.0 | -211.0 | |
| 0.00 | 1.96 | 0.00 | 1.98 | -16.19 | 205.14 | 56.42 | 246.77 | 0.8727 | 589.0 | 548.1 | |
| 0.00 | 1.07 | 0.00 | 1.07 | -15.98 | 204.99 | 56.27 | 246.95 | 0.8709 | 451.0 | 425.8 | |
| 1.25 | 4.55 | 1.25 | 4.55 | -16.53 | 204.72 | 56.00 | 246.25 | 0.8703 | -424.2 | 58.9 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -15.32 | 204.04 | 55.33 | 247.33 | 0.8616 | 512.0 | 500.7 | |
| 0.00 | 1.88 | 0.00 | 1.76 | -14.17 | 203.17 | 54.45 | 248.31 | 0.8511 | 560.0 | 446.4 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -14.23 | 201.34 | 52.63 | 247.57 | 0.8355 | -382.0 | -470.7 | |
| 0.00 | 0.71 | 0.00 | 0.69 | -17.96 | 202.80 | 54.08 | 243.98 | 0.8593 | -453.0 | -406.9 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -12.08 | 200.64 | 51.92 | 249.78 | 0.8225 | 588.0 | 419.0 | |
| 0.00 | 0.89 | 0.00 | 0.83 | -16.17 | 201.99 | 53.28 | 245.64 | 0.8471 | -102.0 | -106.4 | |
| 0.00 | 1.52 | 0.00 | 1.38 | -15.39 | 201.65 | 52.93 | 246.38 | 0.8417 | -264.0 | -174.9 | |
| 2.50 | 5.36 | 2.29 | 4.92 | -15.75 | 201.73 | 53.01 | 246.00 | 0.8436 | -383.1 | -309.1 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -16.15 | 201.77 | 53.05 | 245.58 | 0.8452 | -321.0 | -205.4 | |
| 1.88 | 5.18 | 1.69 | 4.67 | -15.13 | 201.29 | 52.57 | 246.54 | 0.8378 | -644.6 | -509.6 | |
| 0.00 | 1.43 | 0.00 | 1.31 | -16.09 | 201.54 | 52.82 | 245.55 | 0.8431 | -545.0 | -398.9 | |
| 0.71 | 1.88 | 0.65 | 1.69 | -15.57 | 201.19 | 52.47 | 246.00 | 0.8384 | -565.9 | -480.9 | |
| 0.00 | 1.07 | 0.00 | 0.98 | -16.28 | 201.46 | 52.74 | 245.31 | 0.8429 | -357.0 | -304.0 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -15.30 | 201.09 | 52.37 | 246.27 | 0.8367 | -754.0 | -673.3 | |
| 0.45 | 1.70 | 0.39 | 1.49 | -13.99 | 200.60 | 51.88 | 247.56 | 0.8281 | -521.6 | -386.4 | |
| 1.07 | 5.72 | 0.97 | 5.16 | -15.94 | 201.01 | 52.30 | 245.51 | 0.8381 | -685.2 | -625.1 | |
| 0.00 | 1.43 | 0.00 | 1.26 | -15.33 | 200.18 | 51.47 | 245.87 | 0.8288 | -478.0 | -364.4 | |
| 0.00 | 3.39 | 0.00 | 2.94 | -14.45 | 199.79 | 51.07 | 246.71 | 0.8223 | -675.0 | -586.0 | |
| 0.00 | 0.98 | 0.00 | 0.85 | -14.62 | 199.84 | 51.13 | 246.54 | 0.8234 | -571.0 | -548.7 | |
| 4.20 | 10.54 | 3.65 | 9.16 | -15.07 | 199.79 | 51.07 | 246.01 | 0.8244 | -834.7 | -593.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
