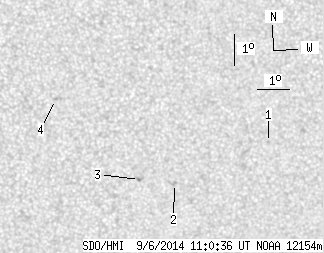

SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.87 | 0.00 | 3.69 | -14.55 | 155.41 | 6.69 | 196.74 | 0.3897 | 818.5 | 636.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | -14.01 | 159.02 | 10.30 | 205.70 | 0.4017 | 832.0 | 571.9 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -15.29 | 156.10 | 7.38 | 197.97 | 0.4033 | 815.0 | 607.9 | |
| 0.00 | 2.68 | 0.00 | 1.44 | -15.14 | 154.99 | 6.27 | 195.51 | 0.3959 | 787.0 | 691.4 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -12.51 | 152.31 | 3.59 | 190.27 | 0.3446 | 840.0 | 613.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
