SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 153.69 | 803.95 | 141.37 | 745.16 | -13.77 | 94.58 | -54.14 | 111.38 | 0.8459 | -105.0 | -141.8 | |
|
previous
or next observation for the same group /

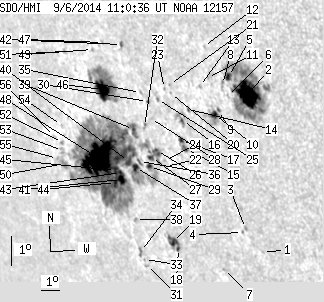

back to the solar disc SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.52 | -16.76 | 100.05 | -48.67 | 116.96 | 0.8089 | -590.0 | -459.1 | |
| 32.42 | 157.44 | 25.65 | 124.45 | -11.60 | 100.83 | -47.89 | 111.22 | 0.7818 | 804.4 | 286.6 | |
| 0.00 | 1.70 | 0.00 | 1.43 | -16.03 | 99.48 | -49.24 | 115.87 | 0.8112 | -490.0 | -380.7 | |
| 0.00 | 0.98 | 0.00 | 0.83 | -16.18 | 99.28 | -49.43 | 115.96 | 0.8136 | -406.0 | -330.8 | |
| 3.04 | -2.00 | 2.43 | -2.00 | -11.10 | 100.06 | -48.66 | 110.31 | 0.7878 | 575.6 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.08 | -11.76 | 99.86 | -48.86 | 111.02 | 0.7921 | 254.0 | 244.4 | |
| 0.00 | 0.98 | 0.00 | 0.87 | -17.54 | 97.84 | -50.87 | 116.87 | 0.8313 | -330.0 | -285.3 | |
| 0.00 | 2.86 | 0.00 | 2.31 | -11.39 | 99.71 | -49.01 | 110.52 | 0.7923 | 258.0 | 233.2 | |
| 0.45 | 14.65 | 0.37 | 12.11 | -12.26 | 99.31 | -49.41 | 111.39 | 0.7992 | 578.2 | 202.2 | |
| 3.57 | -9.00 | 2.95 | -9.00 | -12.41 | 99.08 | -49.64 | 111.47 | 0.8020 | 645.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.51 | -11.24 | 99.03 | -49.68 | 110.07 | 0.7984 | 496.0 | 435.4 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -10.25 | 99.07 | -49.65 | 108.91 | 0.7949 | 457.0 | 363.6 | |
| 0.00 | 1.43 | 0.00 | 1.18 | -11.57 | 98.57 | -50.15 | 110.28 | 0.8041 | 507.0 | 375.5 | |
| 0.00 | 1.52 | 0.00 | 1.29 | -12.37 | 97.82 | -50.90 | 110.95 | 0.8138 | 252.0 | 262.9 | |
| 1.88 | 8.22 | 1.63 | 7.13 | -13.67 | 97.29 | -51.43 | 112.25 | 0.8229 | 661.3 | 468.0 | |
| 0.71 | 8.93 | 0.61 | 7.67 | -12.76 | 97.41 | -51.31 | 111.25 | 0.8189 | 472.4 | 158.8 | |
| 1.88 | -15.00 | 1.63 | -15.00 | -13.43 | 97.17 | -51.55 | 111.92 | 0.8233 | 524.6 | 999999 | |
| 0.98 | 12.86 | 0.91 | 11.98 | -17.07 | 95.71 | -53.01 | 115.47 | 0.8478 | 433.9 | 204.9 | |
| 6.16 | -18.00 | 5.74 | -18.00 | -16.87 | 95.47 | -53.24 | 115.15 | 0.8491 | 476.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -11.94 | 97.04 | -51.68 | 110.15 | 0.8198 | 472.0 | 431.3 | |
| 0.00 | 0.89 | 0.00 | 0.77 | -11.65 | 97.07 | -51.65 | 109.83 | 0.8186 | 427.0 | 362.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -14.38 | 96.04 | -52.68 | 112.58 | 0.8364 | 464.0 | 462.7 | |
| 0.00 | 0.89 | 0.00 | 0.77 | -11.81 | 96.78 | -51.94 | 109.90 | 0.8218 | 458.0 | 387.7 | |
| 0.00 | 1.07 | 0.00 | 0.96 | -14.18 | 96.06 | -52.66 | 112.36 | 0.8356 | 550.0 | 454.8 | |
| 0.00 | 1.61 | 0.00 | 1.41 | -12.21 | 96.31 | -52.41 | 110.20 | 0.8273 | 164.0 | 44.1 | |
| 0.98 | 22.33 | 0.89 | 20.28 | -13.89 | 95.74 | -52.98 | 111.92 | 0.8376 | -553.1 | -72.4 | |
| 2.23 | -26.00 | 2.04 | -26.00 | -14.16 | 95.39 | -53.33 | 112.08 | 0.8414 | 576.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.12 | -12.87 | 95.76 | -52.96 | 110.76 | 0.8343 | -221.0 | -217.9 | |
| 1.79 | 462.86 | 1.64 | 452.06 | -14.47 | 95.17 | -53.54 | 112.36 | 0.8442 | 558.8 | -268.3 | |
| 0.36 | 1.34 | 0.32 | 1.19 | -12.33 | 95.76 | -52.95 | 110.14 | 0.8327 | 129.8 | 195.3 | |
| 0.00 | 1.70 | 0.00 | 1.67 | -17.85 | 93.63 | -55.09 | 115.52 | 0.8670 | -369.0 | -332.7 | |
| 0.00 | 2.50 | 0.00 | 2.26 | -13.17 | 95.35 | -53.37 | 110.95 | 0.8388 | -49.0 | -78.3 | |
| 0.00 | 0.80 | 0.00 | 0.79 | -17.65 | 93.61 | -55.11 | 115.30 | 0.8666 | -514.0 | -485.2 | |
| 0.00 | 3.13 | 0.00 | 3.08 | -17.40 | 93.50 | -55.22 | 114.99 | 0.8667 | -555.0 | -512.4 | |
| 0.00 | 1.07 | 0.00 | 0.96 | -12.07 | 95.48 | -53.24 | 109.74 | 0.8345 | 508.0 | 443.8 | |
| 1.07 | -29.00 | 1.00 | -29.00 | -14.36 | 94.68 | -54.04 | 112.05 | 0.8481 | 284.2 | 999999 | |
| 3.84 | -29.00 | 3.60 | -29.00 | -14.58 | 94.39 | -54.33 | 112.20 | 0.8512 | 457.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 1.39 | -16.34 | 93.69 | -55.03 | 113.89 | 0.8621 | -606.0 | -534.5 | |
| 1.07 | -29.00 | 0.99 | -29.00 | -13.33 | 94.72 | -54.00 | 110.91 | 0.8448 | -813.5 | 999999 | |
| 4.55 | -29.00 | 4.30 | -29.00 | -14.42 | 94.07 | -54.65 | 111.91 | 0.8535 | -423.8 | 999999 | |
| 4.47 | -29.00 | 4.31 | -29.00 | -15.07 | 93.44 | -55.28 | 112.40 | 0.8605 | 441.3 | 999999 | |
| 0.89 | 2.77 | 0.80 | 2.48 | -10.62 | 94.89 | -53.83 | 107.87 | 0.8358 | 290.9 | 127.0 | |
| 1.07 | -29.00 | 1.03 | -29.00 | -14.84 | 93.47 | -55.25 | 112.16 | 0.8596 | 289.2 | 999999 | |
| 1.07 | -29.00 | 1.05 | -29.00 | -15.21 | 93.05 | -55.67 | 112.42 | 0.8641 | -30.2 | 999999 | |
| 2.95 | -29.00 | 2.85 | -29.00 | -14.80 | 93.21 | -55.51 | 112.03 | 0.8617 | -509.3 | 999999 | |
| 19.11 | 63.05 | 18.03 | 59.17 | -12.19 | 93.41 | -55.30 | 109.18 | 0.8529 | -630.7 | -401.5 | |
| 0.00 | 1.61 | 0.00 | 1.48 | -10.66 | 93.87 | -54.85 | 107.59 | 0.8451 | -485.0 | -468.8 | |
| 57.15 | -29.00 | 56.60 | -29.00 | -14.51 | 92.37 | -56.35 | 111.42 | 0.8677 | -686.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 1.01 | -10.95 | 93.24 | -55.47 | 107.72 | 0.8512 | -481.0 | -409.8 | |
| 0.00 | 6.79 | 0.00 | 7.18 | -14.91 | 90.21 | -58.50 | 111.15 | 0.8854 | 310.0 | 278.4 | |
| 0.00 | 1.79 | 0.00 | 1.76 | -11.19 | 91.61 | -57.11 | 107.49 | 0.8657 | -448.0 | -404.5 | |
| 0.00 | 1.70 | 0.00 | 1.77 | -14.21 | 90.39 | -58.33 | 110.45 | 0.8824 | -280.0 | -175.9 | |
| 0.00 | 3.04 | 0.00 | 3.19 | -14.48 | 90.28 | -58.44 | 110.71 | 0.8839 | 21.0 | 74.3 | |
| 0.00 | 0.98 | 0.00 | 1.02 | -13.65 | 90.56 | -58.16 | 109.89 | 0.8798 | -281.0 | -204.8 | |
| 0.00 | 0.98 | 0.00 | 1.05 | -14.79 | 89.84 | -58.88 | 110.90 | 0.8879 | 340.0 | 301.9 | |
| 0.00 | 1.61 | 0.00 | 1.70 | -14.07 | 89.97 | -58.75 | 110.16 | 0.8853 | -145.0 | -83.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
