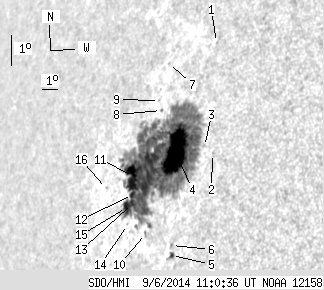

SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.22 | 557.43 | 102.03 | 571.83 | 14.92 | 86.68 | -62.04 | 76.90 | 0.8781 | 33.9 | -132.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.79 | 18.94 | 88.30 | -60.42 | 72.26 | 0.8657 | -286.0 | -204.9 | |
| 0.00 | 0.80 | 0.00 | 0.75 | 15.62 | 89.81 | -58.91 | 76.08 | 0.8517 | -285.0 | -220.4 | |
| 0.00 | 1.16 | 0.00 | 1.11 | 15.78 | 89.24 | -59.47 | 75.90 | 0.8567 | 328.0 | 331.1 | |
| 61.17 | 544.93 | 61.25 | 559.30 | 15.44 | 87.56 | -61.16 | 76.32 | 0.8710 | 550.5 | -131.1 | |
| 1.52 | 3.48 | 1.47 | 3.38 | 12.34 | 88.66 | -60.06 | 79.91 | 0.8618 | -525.6 | -449.7 | |
| 0.00 | 1.34 | 0.00 | 1.30 | 12.63 | 88.55 | -60.17 | 79.57 | 0.8627 | -489.0 | -418.5 | |
| 0.00 | 0.54 | 0.00 | 0.57 | 17.98 | 85.63 | -63.09 | 73.45 | 0.8867 | 213.0 | 187.7 | |
| 0.00 | 1.07 | 0.00 | 1.12 | 16.55 | 86.01 | -62.71 | 75.06 | 0.8836 | 311.0 | 270.4 | |
| 0.00 | 0.27 | 0.00 | 0.28 | 16.83 | 85.71 | -63.01 | 74.75 | 0.8859 | 287.0 | 276.7 | |
| 0.00 | 1.88 | 0.00 | 1.92 | 12.82 | 86.80 | -61.92 | 79.32 | 0.8774 | -539.0 | -547.6 | |
| 25.54 | -4.00 | 27.52 | -4.00 | 14.41 | 85.23 | -63.49 | 77.48 | 0.8897 | -752.3 | 999999 | |
| 2.68 | -4.00 | 2.87 | -4.00 | 13.87 | 85.43 | -63.29 | 78.09 | 0.8882 | -757.6 | 999999 | |
| 1.88 | -4.00 | 2.00 | -4.00 | 13.61 | 85.55 | -63.16 | 78.39 | 0.8873 | -814.4 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.29 | 12.95 | 85.51 | -63.21 | 79.13 | 0.8877 | -231.0 | -263.7 | |
| 6.43 | -4.00 | 6.92 | -4.00 | 13.44 | 85.21 | -63.51 | 78.57 | 0.8900 | -538.4 | 999999 | |
| 0.00 | 0.89 | 0.00 | 1.02 | 13.85 | 83.56 | -65.16 | 78.07 | 0.9024 | -227.0 | -162.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
