SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.75 | 23.84 | 6.83 | 11.85 | 8.73 | 144.46 | -4.25 | 68.81 | 0.0784 | -438.0 | 54.3 | |
|
previous
or next observation for the same group /

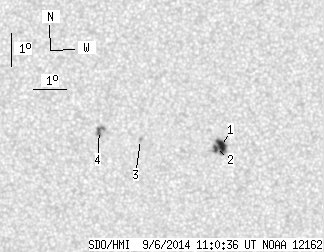

back to the solar disc SDO HMI 2014-09-06 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.84 | 16.61 | 4.39 | 8.24 | 8.62 | 145.56 | -3.15 | 65.92 | 0.0599 | -1082.4 | -647.8 | |
| 2.32 | -1.00 | 1.15 | -1.00 | 8.56 | 145.38 | -3.34 | 68.00 | 0.0624 | -882.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 8.81 | 143.08 | -5.64 | 73.88 | 0.1016 | 1026.0 | 853.5 | |
| 2.59 | 5.89 | 1.29 | 2.94 | 9.06 | 141.81 | -6.91 | 74.54 | 0.1237 | 1016.3 | 881.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
