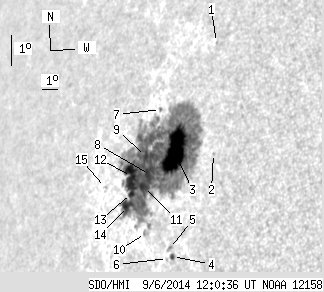

SDO HMI 2014-09-06 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.46 | 569.75 | 126.29 | 575.21 | 14.79 | 86.57 | -61.60 | 77.06 | 0.8745 | -95.8 | -106.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.78 | 18.93 | 88.33 | -59.83 | 72.24 | 0.8608 | -208.0 | -196.3 | |
| 0.00 | 0.80 | 0.00 | 0.74 | 15.61 | 89.87 | -58.30 | 76.07 | 0.8463 | -287.0 | -226.9 | |
| 61.79 | 555.83 | 60.92 | 561.51 | 15.43 | 87.53 | -60.64 | 76.33 | 0.8666 | 532.4 | -100.4 | |
| 1.52 | 2.50 | 1.45 | 2.38 | 12.31 | 88.74 | -59.43 | 79.96 | 0.8563 | -571.9 | -456.9 | |
| 0.00 | 2.59 | 0.00 | 2.49 | 12.53 | 88.48 | -59.69 | 79.70 | 0.8586 | -525.0 | -374.0 | |
| 0.00 | 1.88 | 0.00 | 1.80 | 12.22 | 88.47 | -59.70 | 80.06 | 0.8587 | -388.0 | -393.3 | |
| 0.00 | 1.07 | 0.00 | 1.11 | 16.57 | 86.00 | -62.17 | 75.03 | 0.8793 | 314.0 | 274.0 | |
| 13.30 | -3.00 | 13.59 | -3.00 | 14.58 | 86.31 | -61.86 | 77.30 | 0.8768 | -626.7 | 999999 | |
| 3.39 | -3.00 | 3.52 | -3.00 | 15.08 | 85.78 | -62.39 | 76.73 | 0.8810 | -686.2 | 999999 | |
| 0.00 | 3.57 | 0.00 | 3.60 | 12.81 | 86.84 | -61.33 | 79.34 | 0.8726 | -546.0 | -484.4 | |
| 7.41 | -3.00 | 7.62 | -3.00 | 14.18 | 86.09 | -62.07 | 77.75 | 0.8785 | -601.6 | 999999 | |
| 22.50 | -3.00 | 23.86 | -3.00 | 14.39 | 85.17 | -63.00 | 77.51 | 0.8858 | -721.2 | 999999 | |
| 3.30 | -3.00 | 3.47 | -3.00 | 13.89 | 85.42 | -62.75 | 78.08 | 0.8840 | -749.8 | 999999 | |
| 11.25 | -3.00 | 11.86 | -3.00 | 13.48 | 85.34 | -62.83 | 78.54 | 0.8846 | -600.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.80 | 13.88 | 83.58 | -64.58 | 78.06 | 0.8981 | -288.0 | -225.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
