SDO HMI 2014-09-06 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.58 | 36.53 | 21.58 | 61.75 | -20.38 | 79.40 | -68.77 | 113.96 | 0.9573 | -136.7 | -114.2 | |
|
previous
or next observation for the same group /

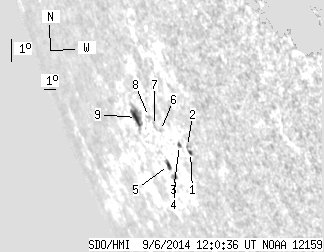

back to the solar disc SDO HMI 2014-09-06 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 2.50 | 1.45 | 3.69 | -20.63 | 82.36 | -65.80 | 114.98 | 0.9433 | 290.8 | 275.5 | |
| 0.00 | 1.43 | 0.00 | 2.11 | -20.44 | 82.29 | -65.88 | 114.77 | 0.9434 | 397.0 | 367.2 | |
| 0.80 | 2.14 | 1.22 | 3.26 | -20.49 | 81.60 | -66.57 | 114.63 | 0.9470 | 328.1 | 215.4 | |
| 0.98 | 3.84 | 1.64 | 6.42 | -21.74 | 80.08 | -68.09 | 115.50 | 0.9561 | 408.1 | 313.6 | |
| 2.14 | 3.84 | 3.59 | 6.44 | -21.37 | 79.83 | -68.34 | 115.06 | 0.9567 | 58.7 | -34.9 | |
| 0.00 | 0.63 | 0.00 | 1.01 | -20.14 | 80.30 | -67.87 | 113.94 | 0.9529 | -270.0 | -317.4 | |
| 0.00 | 2.59 | 0.00 | 4.25 | -20.03 | 79.89 | -68.28 | 113.72 | 0.9547 | -382.0 | -380.4 | |
| 0.00 | 1.52 | 0.00 | 2.53 | -19.77 | 79.60 | -68.57 | 113.38 | 0.9557 | -456.0 | -456.1 | |
| 7.68 | 18.04 | 13.68 | 32.04 | -19.96 | 78.31 | -69.85 | 113.26 | 0.9618 | -328.1 | -257.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
