SDO HMI 2014-09-06 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.77 | 18.84 | 2.11 | 13.89 | -8.79 | 193.35 | 45.18 | 251.14 | 0.7427 | -152.8 | -91.8 | |
|
previous
or next observation for the same group /

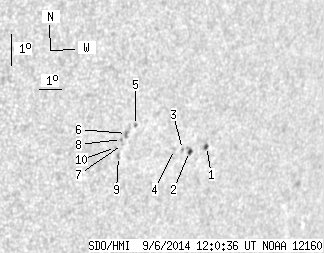

back to the solar disc SDO HMI 2014-09-06 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 2.86 | 1.03 | 2.20 | -9.04 | 195.50 | 47.33 | 251.70 | 0.7671 | 521.0 | 353.9 | |
| 1.43 | 3.93 | 1.08 | 2.98 | -9.13 | 194.74 | 46.58 | 251.29 | 0.7594 | 681.5 | 599.9 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -9.03 | 194.42 | 46.25 | 251.28 | 0.7555 | 729.0 | 655.7 | |
| 0.00 | 1.43 | 0.00 | 1.07 | -9.00 | 194.06 | 45.89 | 251.18 | 0.7515 | 248.0 | 233.2 | |
| 0.00 | 1.34 | 0.00 | 0.96 | -8.08 | 192.23 | 44.06 | 251.60 | 0.7279 | -479.0 | -453.7 | |
| 0.00 | 3.39 | 0.00 | 2.43 | -8.30 | 191.87 | 43.71 | 251.17 | 0.7247 | -584.0 | -476.2 | |
| 0.00 | 1.34 | 0.00 | 0.96 | -8.63 | 191.75 | 43.58 | 250.68 | 0.7246 | -572.0 | -459.3 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -8.47 | 191.69 | 43.52 | 250.86 | 0.7232 | -743.0 | -634.6 | |
| 0.00 | 1.88 | 0.00 | 1.34 | -8.99 | 191.64 | 43.47 | 250.15 | 0.7247 | -657.0 | -463.1 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -8.70 | 191.47 | 43.30 | 250.46 | 0.7216 | -759.0 | -674.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
