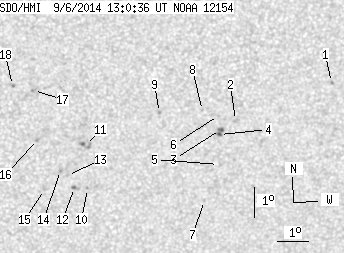

SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.69 | 28.83 | 0.95 | 16.12 | -17.92 | 158.75 | 11.13 | 203.32 | 0.4648 | -29.0 | -139.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.76 | -16.25 | 165.03 | 17.41 | 216.17 | 0.4887 | 748.0 | 675.6 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -17.39 | 161.97 | 14.35 | 209.81 | 0.4778 | 668.0 | 608.7 | |
| 0.98 | 4.82 | 0.55 | 2.72 | -17.67 | 161.51 | 13.89 | 208.70 | 0.4781 | 996.9 | 773.3 | |
| 0.71 | -3.00 | 0.40 | -3.00 | -17.84 | 161.49 | 13.87 | 208.49 | 0.4802 | 847.1 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -18.85 | 161.53 | 13.92 | 207.56 | 0.4939 | 365.0 | 391.2 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -17.21 | 161.40 | 13.79 | 209.02 | 0.4711 | 743.0 | 645.2 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -20.05 | 161.18 | 13.56 | 205.82 | 0.5076 | 698.0 | 443.4 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -17.02 | 160.87 | 13.25 | 208.27 | 0.4647 | 776.0 | 498.6 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -17.05 | 159.48 | 11.86 | 205.68 | 0.4553 | 897.0 | 727.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -19.53 | 157.30 | 9.68 | 199.45 | 0.4778 | -668.0 | -596.8 | |
| 0.00 | 5.18 | 0.00 | 2.88 | -18.08 | 157.15 | 9.53 | 200.29 | 0.4560 | -764.0 | -720.7 | |
| 0.00 | 2.68 | 0.00 | 1.51 | -19.49 | 156.87 | 9.26 | 198.69 | 0.4750 | -795.0 | -659.1 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.08 | 156.62 | 9.01 | 198.51 | 0.4678 | -781.0 | -703.3 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -18.91 | 156.39 | 8.77 | 198.18 | 0.4641 | -800.0 | -680.7 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.54 | 155.90 | 8.29 | 196.82 | 0.4712 | -746.0 | -636.8 | |
| 0.00 | 1.52 | 0.00 | 0.84 | -17.85 | 155.60 | 7.98 | 197.36 | 0.4448 | -791.0 | -678.8 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.22 | 155.40 | 7.78 | 198.14 | 0.4194 | -891.0 | -638.8 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -16.04 | 154.73 | 7.11 | 196.79 | 0.4136 | -913.0 | -731.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
