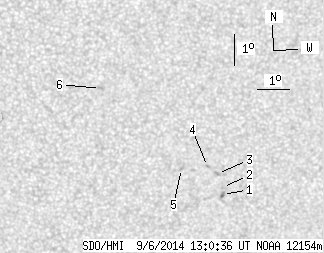

SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.89 | 0.00 | 5.88 | -14.79 | 155.09 | 7.47 | 198.36 | 0.3964 | 837.0 | 671.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 1.32 | -16.01 | 156.32 | 8.70 | 200.29 | 0.4210 | 935.0 | 767.0 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -15.78 | 156.31 | 8.69 | 200.46 | 0.4175 | 811.0 | 668.2 | |
| 0.00 | 2.05 | 0.00 | 1.11 | -15.32 | 156.13 | 8.51 | 200.48 | 0.4097 | 864.0 | 691.9 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -15.08 | 155.80 | 8.18 | 199.96 | 0.4043 | 732.0 | 637.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -15.13 | 154.98 | 7.36 | 198.06 | 0.4008 | 773.0 | 542.1 | |
| 0.00 | 2.59 | 0.00 | 1.37 | -12.50 | 152.38 | 4.76 | 193.52 | 0.3483 | 907.0 | 672.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
