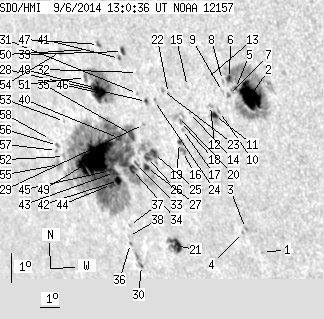

SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.98 | 822.87 | 156.20 | 742.87 | -13.74 | 94.62 | -53.00 | 111.76 | 0.8360 | -98.6 | -154.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.95 | -16.72 | 100.10 | -47.51 | 117.45 | 0.7981 | -412.0 | -338.6 | |
| 37.50 | 154.80 | 28.95 | 119.50 | -11.59 | 100.97 | -46.65 | 111.73 | 0.7691 | 785.4 | 257.4 | |
| 0.00 | 1.61 | 0.00 | 1.32 | -15.99 | 99.54 | -48.08 | 116.34 | 0.8003 | -478.0 | -329.5 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -16.14 | 99.35 | -48.27 | 116.43 | 0.8027 | -451.0 | -341.1 | |
| 0.80 | -2.00 | 0.63 | -2.00 | -11.42 | 100.32 | -47.30 | 111.26 | 0.7752 | 456.9 | 999999 | |
| 2.59 | -2.00 | 2.03 | -2.00 | -11.13 | 100.11 | -47.51 | 110.81 | 0.7762 | 585.9 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.76 | -11.68 | 99.94 | -47.68 | 111.41 | 0.7800 | 453.0 | 363.6 | |
| 0.00 | 1.25 | 0.00 | 0.98 | -11.22 | 99.77 | -47.85 | 110.78 | 0.7801 | 275.0 | 196.2 | |
| 0.00 | 1.34 | 0.00 | 1.06 | -11.58 | 99.69 | -47.93 | 111.18 | 0.7822 | 306.0 | 220.9 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -12.24 | 99.39 | -48.23 | 111.86 | 0.7875 | 411.0 | 405.6 | |
| 2.68 | 7.23 | 2.16 | 5.82 | -12.40 | 99.12 | -48.50 | 111.93 | 0.7908 | 612.4 | 490.6 | |
| 0.00 | 1.70 | 0.00 | 1.37 | -12.09 | 99.01 | -48.61 | 111.51 | 0.7908 | 658.0 | 496.3 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -11.23 | 99.02 | -48.59 | 110.49 | 0.7876 | 568.0 | 463.8 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -12.42 | 97.93 | -49.69 | 111.47 | 0.8025 | 459.0 | 424.5 | |
| 0.00 | 2.14 | 0.00 | 1.76 | -11.58 | 98.04 | -49.58 | 110.52 | 0.7985 | 508.0 | 408.2 | |
| 0.00 | 3.30 | 0.00 | 2.80 | -13.74 | 97.22 | -50.40 | 112.73 | 0.8137 | 638.0 | 550.6 | |
| 0.00 | 1.25 | 0.00 | 1.05 | -13.01 | 97.43 | -50.19 | 111.97 | 0.8093 | 499.0 | 402.9 | |
| 0.00 | 1.96 | 0.00 | 1.65 | -12.76 | 97.40 | -50.22 | 111.66 | 0.8087 | 523.0 | 448.9 | |
| 1.25 | 2.50 | 1.06 | 2.12 | -13.45 | 97.15 | -50.47 | 112.37 | 0.8133 | 534.8 | 465.5 | |
| 0.00 | 4.82 | 0.00 | 4.04 | -12.60 | 97.34 | -50.27 | 111.46 | 0.8087 | -159.0 | 5.2 | |
| 10.18 | 16.78 | 9.17 | 15.15 | -16.93 | 95.76 | -51.86 | 115.77 | 0.8376 | 461.7 | 48.1 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -11.90 | 97.04 | -50.58 | 110.52 | 0.8092 | 509.0 | 414.8 | |
| 0.00 | 1.70 | 0.00 | 1.43 | -11.84 | 96.77 | -50.85 | 110.33 | 0.8117 | 485.0 | 358.5 | |
| 0.00 | 1.43 | 0.00 | 1.22 | -12.20 | 96.27 | -51.35 | 110.58 | 0.8175 | 335.0 | 177.9 | |
| 4.91 | 27.85 | 4.32 | 24.63 | -13.95 | 95.70 | -51.92 | 112.38 | 0.8283 | -302.1 | -150.4 | |
| 3.66 | -25.00 | 3.25 | -25.00 | -14.12 | 95.34 | -52.28 | 112.43 | 0.8320 | 506.0 | 999999 | |
| 3.04 | 19.10 | 2.71 | 17.09 | -14.46 | 95.18 | -52.44 | 112.76 | 0.8346 | 554.7 | 204.6 | |
| 0.98 | 2.41 | 0.85 | 2.08 | -12.28 | 95.85 | -51.77 | 110.51 | 0.8216 | 168.3 | 233.6 | |
| 0.00 | 1.07 | 0.00 | 0.94 | -13.05 | 95.47 | -52.14 | 111.26 | 0.8275 | 188.0 | 91.8 | |
| 0.80 | 6.43 | 0.77 | 6.17 | -17.81 | 93.59 | -54.02 | 115.88 | 0.8584 | -482.3 | -498.3 | |
| 0.00 | 1.07 | 0.00 | 0.93 | -12.06 | 95.46 | -52.16 | 110.12 | 0.8246 | 398.0 | 378.8 | |
| 0.00 | 1.16 | 0.00 | 1.00 | -11.38 | 95.64 | -51.98 | 109.39 | 0.8209 | 119.0 | 197.4 | |
| 1.07 | 461.46 | 0.97 | 438.41 | -14.38 | 94.68 | -52.93 | 112.48 | 0.8386 | 330.1 | -277.6 | |
| 4.55 | -33.00 | 4.15 | -33.00 | -14.60 | 94.40 | -53.22 | 112.63 | 0.8418 | 415.0 | 999999 | |
| 4.64 | -33.00 | 4.16 | -33.00 | -13.44 | 94.74 | -52.88 | 111.44 | 0.8353 | -758.1 | 999999 | |
| 0.45 | 1.34 | 0.43 | 1.28 | -17.12 | 93.30 | -54.32 | 115.01 | 0.8587 | -516.4 | -505.1 | |
| 0.00 | 1.16 | 0.00 | 1.10 | -16.51 | 93.51 | -54.11 | 114.42 | 0.8551 | -605.0 | -485.5 | |
| 0.00 | 0.62 | 0.00 | 0.60 | -16.89 | 93.29 | -54.33 | 114.76 | 0.8581 | -491.0 | -520.3 | |
| 2.14 | 3.75 | 1.87 | 3.26 | -10.78 | 95.04 | -52.58 | 108.47 | 0.8247 | 366.3 | 234.7 | |
| 3.30 | -33.00 | 3.01 | -33.00 | -13.64 | 94.04 | -53.58 | 111.41 | 0.8420 | -844.7 | 999999 | |
| 0.54 | 2.05 | 0.47 | 1.80 | -11.02 | 94.82 | -52.80 | 108.68 | 0.8274 | -43.7 | -74.4 | |
| 3.75 | -33.00 | 3.51 | -33.00 | -15.05 | 93.49 | -54.13 | 112.79 | 0.8509 | 473.2 | 999999 | |
| 2.14 | -33.00 | 2.01 | -33.00 | -14.81 | 93.37 | -54.25 | 112.48 | 0.8512 | -131.9 | 999999 | |
| 3.48 | -33.00 | 3.30 | -33.00 | -15.23 | 93.04 | -54.57 | 112.83 | 0.8551 | 6.6 | 999999 | |
| 0.27 | -33.00 | 0.25 | -33.00 | -14.76 | 93.17 | -54.45 | 112.36 | 0.8528 | -814.7 | 999999 | |
| 7.86 | 63.83 | 7.19 | 58.29 | -12.26 | 93.53 | -54.09 | 109.67 | 0.8426 | -789.2 | -423.2 | |
| 1.07 | 2.68 | 0.96 | 2.40 | -10.68 | 93.82 | -53.80 | 107.96 | 0.8357 | -533.9 | -434.3 | |
| 8.57 | -46.00 | 7.87 | -46.00 | -12.13 | 93.31 | -54.31 | 109.44 | 0.8442 | -525.2 | 999999 | |
| 60.53 | -33.00 | 58.02 | -33.00 | -14.46 | 92.41 | -55.21 | 111.75 | 0.8582 | -682.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.98 | -10.90 | 93.24 | -54.38 | 108.02 | 0.8415 | -455.0 | -433.4 | |
| 1.52 | -46.00 | 1.41 | -46.00 | -11.83 | 92.81 | -54.81 | 108.94 | 0.8477 | -348.5 | 999999 | |
| 0.00 | 2.14 | 0.00 | 2.16 | -14.58 | 90.67 | -56.95 | 111.30 | 0.8726 | -234.0 | -196.9 | |
| 0.00 | 0.80 | 0.00 | 0.79 | -13.41 | 91.12 | -56.50 | 110.15 | 0.8660 | -252.0 | -236.8 | |
| 0.00 | 3.12 | 0.00 | 2.98 | -11.13 | 91.65 | -55.97 | 107.78 | 0.8559 | -554.0 | -397.6 | |
| 0.00 | 4.91 | 0.00 | 5.02 | -14.88 | 90.25 | -57.36 | 111.49 | 0.8766 | 306.0 | 263.7 | |
| 0.71 | 1.87 | 0.72 | 1.90 | -14.26 | 90.39 | -57.22 | 110.85 | 0.8740 | -199.2 | -150.6 | |
| 0.00 | 0.98 | 0.00 | 1.00 | -14.43 | 90.27 | -57.35 | 111.00 | 0.8754 | -83.0 | -9.1 | |
| 0.00 | 0.62 | 0.00 | 0.64 | -14.10 | 90.05 | -57.57 | 110.57 | 0.8763 | -169.0 | -92.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
