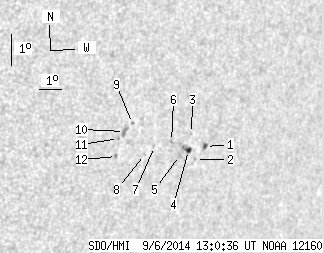

SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.30 | 23.92 | 2.54 | 17.97 | -8.91 | 193.79 | 46.17 | 251.40 | 0.7540 | 21.8 | 66.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 13:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.07 | 2.32 | 0.83 | 1.81 | -9.11 | 195.59 | 47.97 | 251.86 | 0.7740 | 560.7 | 333.1 | |
| 0.00 | 0.98 | 0.00 | 0.76 | -9.48 | 195.20 | 47.58 | 251.25 | 0.7712 | 508.0 | 357.4 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -8.63 | 194.87 | 47.25 | 252.18 | 0.7649 | 441.0 | 400.9 | |
| 2.23 | 6.87 | 1.71 | 5.26 | -9.16 | 194.82 | 47.20 | 251.50 | 0.7662 | 740.3 | 615.2 | |
| 0.00 | 2.59 | 0.00 | 1.97 | -9.28 | 194.44 | 46.82 | 251.20 | 0.7625 | 416.0 | 491.3 | |
| 0.00 | 1.25 | 0.00 | 0.94 | -8.80 | 194.00 | 46.38 | 251.63 | 0.7561 | 380.0 | 296.1 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -8.89 | 193.26 | 45.64 | 251.22 | 0.7484 | -381.0 | -274.4 | |
| 0.00 | 0.98 | 0.00 | 0.73 | -9.10 | 192.86 | 45.24 | 250.78 | 0.7448 | -245.0 | -227.3 | |
| 0.00 | 1.16 | 0.00 | 0.84 | -8.07 | 192.18 | 44.56 | 251.83 | 0.7335 | -550.0 | -505.3 | |
| 0.00 | 4.20 | 0.00 | 3.04 | -8.29 | 191.87 | 44.25 | 251.41 | 0.7308 | -716.0 | -532.3 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -8.49 | 191.64 | 44.02 | 251.06 | 0.7290 | -706.0 | -595.2 | |
| 0.00 | 1.52 | 0.00 | 1.10 | -9.05 | 191.64 | 44.02 | 250.32 | 0.7311 | -605.0 | -493.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
