SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.62 | 0.00 | 3.35 | 9.78 | 179.72 | 32.66 | 278.26 | 0.5341 | 12.2 | -54.1 | |
|
previous
or next observation for the same group /

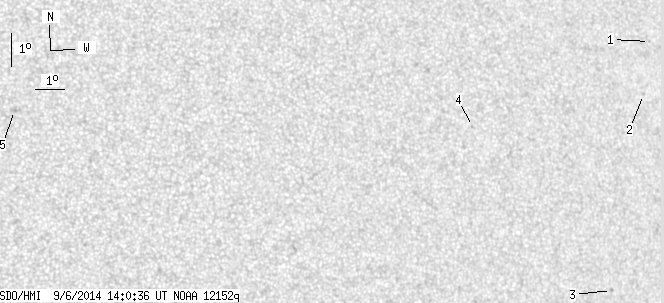

back to the solar disc SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.41 | 12.57 | 187.59 | 40.53 | 280.94 | 0.6482 | -426.0 | -443.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 11.00 | 187.07 | 40.00 | 278.52 | 0.6403 | -388.0 | -430.5 | |
| 0.00 | 1.43 | 0.00 | 0.90 | 5.20 | 185.13 | 38.06 | 269.18 | 0.6162 | -553.0 | -507.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | 10.52 | 180.42 | 33.36 | 278.19 | 0.5483 | 641.0 | 457.7 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 11.86 | 164.85 | 17.78 | 286.14 | 0.3125 | 787.0 | 547.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
