SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177.98 | 802.10 | 156.70 | 714.86 | -13.70 | 94.70 | -52.36 | 111.95 | 0.8302 | -142.3 | -157.0 | |
|
previous
or next observation for the same group /

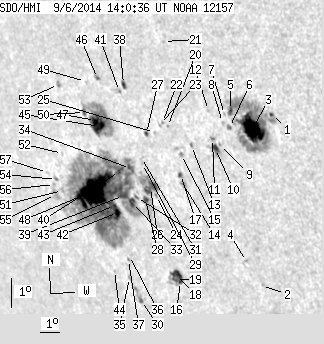

back to the solar disc SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.80 | 153.53 | 0.60 | 117.12 | -11.06 | 101.96 | -45.11 | 111.76 | 0.7509 | -404.0 | 255.4 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -16.74 | 100.03 | -47.04 | 117.70 | 0.7938 | -556.0 | -456.0 | |
| 36.24 | -1.00 | 27.67 | -1.00 | -11.59 | 101.01 | -46.06 | 112.00 | 0.7630 | 829.9 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.94 | -16.00 | 99.56 | -47.50 | 116.62 | 0.7950 | -449.0 | -381.8 | |
| 2.59 | -1.00 | 2.00 | -1.00 | -11.10 | 100.12 | -46.94 | 111.01 | 0.7704 | 536.7 | 999999 | |
| 0.71 | 2.14 | 0.56 | 1.67 | -11.66 | 99.96 | -47.11 | 111.62 | 0.7741 | 422.2 | 334.1 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -11.26 | 99.82 | -47.25 | 111.07 | 0.7741 | 206.0 | 231.2 | |
| 0.00 | 1.52 | 0.00 | 1.19 | -11.53 | 99.67 | -47.40 | 111.34 | 0.7766 | 280.0 | 253.5 | |
| 0.00 | 1.16 | 0.00 | 0.92 | -12.26 | 99.36 | -47.71 | 112.09 | 0.7824 | 593.0 | 524.8 | |
| 3.39 | 6.69 | 2.70 | 5.33 | -12.40 | 99.14 | -47.93 | 112.17 | 0.7852 | 649.4 | 495.4 | |
| 0.36 | 2.05 | 0.28 | 1.63 | -12.09 | 99.07 | -47.99 | 111.77 | 0.7847 | 507.8 | 420.7 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -11.20 | 99.10 | -47.97 | 110.71 | 0.7812 | 222.0 | 362.9 | |
| 0.00 | 1.34 | 0.00 | 1.09 | -12.42 | 98.01 | -49.06 | 111.72 | 0.7964 | 294.0 | 280.3 | |
| 0.00 | 2.95 | 0.00 | 2.47 | -13.74 | 97.26 | -49.81 | 112.97 | 0.8081 | 637.0 | 536.6 | |
| 0.00 | 1.79 | 0.00 | 1.48 | -12.76 | 97.44 | -49.63 | 111.90 | 0.8030 | 611.0 | 498.4 | |
| 1.61 | 17.85 | 1.42 | 15.87 | -17.01 | 96.01 | -51.06 | 116.19 | 0.8310 | 393.6 | 84.4 | |
| 1.25 | 2.59 | 1.04 | 2.16 | -13.42 | 97.21 | -49.86 | 112.58 | 0.8076 | 466.7 | 391.5 | |
| 6.78 | -16.00 | 6.01 | -16.00 | -16.82 | 95.93 | -51.14 | 115.94 | 0.8311 | 533.0 | 999999 | |
| 1.96 | -16.00 | 1.75 | -16.00 | -16.96 | 95.77 | -51.30 | 116.04 | 0.8329 | 410.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.81 | -11.92 | 96.99 | -50.08 | 110.72 | 0.8045 | 479.0 | 410.9 | |
| 0.00 | 1.52 | 0.00 | 1.22 | -9.19 | 97.41 | -49.66 | 107.62 | 0.7917 | -236.0 | -290.6 | |
| 0.00 | 0.98 | 0.00 | 0.82 | -11.81 | 96.77 | -50.30 | 110.51 | 0.8063 | 333.0 | 346.3 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -11.89 | 96.60 | -50.46 | 110.54 | 0.8081 | 364.0 | 346.6 | |
| 0.00 | 1.61 | 0.00 | 1.40 | -14.24 | 95.77 | -51.29 | 112.95 | 0.8236 | 302.0 | 398.2 | |
| 0.00 | 0.98 | 0.00 | 0.83 | -12.18 | 96.28 | -50.78 | 110.76 | 0.8121 | 123.0 | 158.5 | |
| 10.00 | 477.27 | 8.71 | 445.08 | -14.01 | 95.55 | -51.52 | 112.60 | 0.8249 | -30.9 | -271.6 | |
| 1.25 | 2.50 | 1.07 | 2.13 | -12.25 | 95.87 | -51.20 | 110.69 | 0.8163 | 139.6 | 145.1 | |
| 2.14 | 14.10 | 1.89 | 12.45 | -14.43 | 95.16 | -51.91 | 112.93 | 0.8298 | 583.5 | 261.5 | |
| 0.00 | 0.98 | 0.00 | 0.85 | -13.26 | 95.38 | -51.69 | 111.67 | 0.8240 | -306.0 | -293.8 | |
| 1.25 | 7.14 | 1.18 | 6.75 | -17.88 | 93.62 | -53.45 | 116.18 | 0.8540 | -512.6 | -467.5 | |
| 0.00 | 1.25 | 0.00 | 1.08 | -13.06 | 95.39 | -51.68 | 111.45 | 0.8233 | 48.0 | -44.1 | |
| 0.62 | -26.00 | 0.56 | -26.00 | -14.41 | 94.70 | -52.37 | 112.74 | 0.8338 | 361.0 | 999999 | |
| 4.64 | -26.00 | 4.18 | -26.00 | -14.60 | 94.43 | -52.64 | 112.85 | 0.8367 | 522.4 | 999999 | |
| 3.66 | -26.00 | 3.24 | -26.00 | -13.48 | 94.70 | -52.37 | 111.68 | 0.8309 | -749.6 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.52 | -17.16 | 93.29 | -53.78 | 115.26 | 0.8544 | -431.0 | -451.1 | |
| 0.00 | 0.54 | 0.00 | 0.50 | -16.41 | 93.60 | -53.47 | 114.55 | 0.8495 | -641.0 | -489.3 | |
| 0.00 | 0.98 | 0.00 | 0.92 | -16.55 | 93.49 | -53.58 | 114.66 | 0.8509 | -454.0 | -479.5 | |
| 2.14 | 3.84 | 1.84 | 3.29 | -10.78 | 95.11 | -51.96 | 108.69 | 0.8189 | 293.5 | 225.4 | |
| 5.36 | -26.00 | 4.86 | -26.00 | -14.42 | 94.03 | -53.04 | 112.49 | 0.8397 | -459.5 | 999999 | |
| 3.93 | -26.00 | 3.53 | -26.00 | -13.64 | 94.08 | -52.99 | 111.63 | 0.8369 | -794.0 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.00 | -11.02 | 94.84 | -52.23 | 108.88 | 0.8222 | 1.0 | 33.5 | |
| 4.11 | -26.00 | 3.79 | -26.00 | -15.02 | 93.49 | -53.57 | 112.97 | 0.8461 | 547.2 | 999999 | |
| 0.80 | -26.00 | 0.74 | -26.00 | -14.81 | 93.42 | -53.65 | 112.70 | 0.8461 | 259.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.69 | -17.01 | 92.54 | -54.53 | 114.81 | 0.8600 | -317.0 | -351.1 | |
| 8.21 | 64.62 | 7.42 | 58.27 | -12.27 | 93.47 | -53.60 | 109.85 | 0.8383 | -839.8 | -430.1 | |
| 0.89 | 2.86 | 0.79 | 2.53 | -10.72 | 93.79 | -53.27 | 108.17 | 0.8310 | -573.0 | -446.6 | |
| 7.50 | -45.00 | 6.79 | -45.00 | -12.10 | 93.31 | -53.76 | 109.59 | 0.8392 | -644.6 | 999999 | |
| 63.73 | -26.00 | 60.17 | -26.00 | -14.42 | 92.48 | -54.58 | 111.93 | 0.8529 | -732.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -10.89 | 93.13 | -53.94 | 108.14 | 0.8375 | -547.0 | -480.8 | |
| 1.61 | -45.00 | 1.47 | -45.00 | -11.90 | 92.78 | -54.28 | 109.19 | 0.8433 | -264.8 | 999999 | |
| 0.00 | 2.59 | 0.00 | 2.57 | -14.62 | 90.63 | -56.44 | 111.51 | 0.8686 | -182.0 | -159.3 | |
| 0.00 | 0.98 | 0.00 | 0.95 | -13.38 | 91.10 | -55.97 | 110.30 | 0.8616 | -241.0 | -241.5 | |
| 0.00 | 2.86 | 0.00 | 2.68 | -11.14 | 91.61 | -55.46 | 107.94 | 0.8516 | -485.0 | -385.5 | |
| 0.45 | 1.70 | 0.44 | 1.69 | -14.29 | 90.42 | -56.65 | 111.08 | 0.8695 | -220.0 | -197.6 | |
| 0.00 | 7.77 | 0.00 | 7.82 | -14.80 | 90.16 | -56.91 | 111.55 | 0.8729 | 306.0 | 261.1 | |
| 0.00 | 1.25 | 0.00 | 1.25 | -14.47 | 90.23 | -56.83 | 111.21 | 0.8714 | -120.0 | -13.4 | |
| 0.00 | 0.98 | 0.00 | 0.99 | -14.11 | 89.97 | -57.10 | 110.74 | 0.8726 | -211.0 | -161.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
