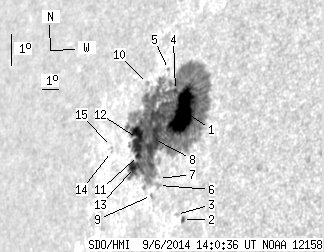

SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.28 | 565.90 | 120.11 | 553.14 | 14.84 | 86.58 | -60.49 | 76.99 | 0.8653 | -65.0 | -84.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.07 | 552.96 | 57.42 | 540.49 | 15.48 | 87.56 | -59.50 | 76.25 | 0.8569 | 638.4 | -78.9 | |
| 0.80 | 2.32 | 0.74 | 2.14 | 12.27 | 88.82 | -58.25 | 80.03 | 0.8458 | -460.3 | -450.3 | |
| 0.00 | 1.34 | 0.00 | 1.25 | 12.38 | 88.42 | -58.65 | 79.89 | 0.8494 | -533.0 | -407.5 | |
| 1.52 | -1.00 | 1.48 | -1.00 | 16.05 | 86.78 | -60.29 | 75.60 | 0.8638 | 22.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.89 | 16.62 | 86.03 | -61.04 | 74.95 | 0.8702 | 285.0 | 291.5 | |
| 0.00 | 3.30 | 0.00 | 3.20 | 13.13 | 87.03 | -60.04 | 78.99 | 0.8615 | -222.0 | -272.2 | |
| 0.00 | 0.80 | 0.00 | 0.78 | 13.34 | 86.95 | -60.12 | 78.75 | 0.8622 | -130.0 | -108.4 | |
| 26.06 | -1.00 | 25.87 | -1.00 | 14.46 | 86.20 | -60.87 | 77.44 | 0.8686 | -602.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.31 | 12.79 | 86.73 | -60.34 | 79.38 | 0.8642 | -549.0 | -547.6 | |
| 0.00 | 2.14 | 0.00 | 2.21 | 16.07 | 84.93 | -62.14 | 75.61 | 0.8790 | -358.0 | -302.8 | |
| 3.39 | -1.00 | 3.45 | -1.00 | 13.88 | 85.42 | -61.65 | 78.10 | 0.8750 | -847.5 | 999999 | |
| 21.69 | -1.00 | 22.23 | -1.00 | 14.38 | 85.12 | -61.95 | 77.53 | 0.8775 | -825.2 | 999999 | |
| 8.75 | -1.00 | 8.92 | -1.00 | 13.50 | 85.33 | -61.74 | 78.54 | 0.8758 | -669.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.29 | 13.81 | 83.62 | -63.45 | 78.16 | 0.8895 | -238.0 | -198.7 | |
| 0.00 | 0.54 | 0.00 | 0.58 | 13.96 | 83.54 | -63.53 | 77.99 | 0.8900 | -123.0 | -140.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
