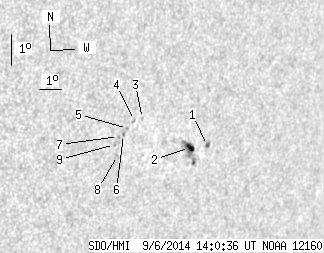

SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.44 | 27.40 | 4.23 | 20.91 | -8.92 | 194.01 | 46.94 | 251.69 | 0.7623 | -17.8 | 164.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 14:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.89 | 2.05 | 0.70 | 1.62 | -9.13 | 195.64 | 48.57 | 252.06 | 0.7804 | 456.9 | 353.7 | |
| 4.55 | 16.96 | 3.53 | 13.17 | -9.12 | 194.81 | 47.74 | 251.76 | 0.7717 | 676.7 | 506.0 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -7.99 | 192.53 | 45.46 | 252.29 | 0.7433 | -364.0 | -289.7 | |
| 0.00 | 1.34 | 0.00 | 0.98 | -8.02 | 192.19 | 45.12 | 252.11 | 0.7396 | -525.0 | -452.5 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -8.25 | 191.91 | 44.85 | 251.71 | 0.7373 | -362.0 | -289.8 | |
| 0.00 | 1.34 | 0.00 | 0.98 | -8.42 | 191.77 | 44.70 | 251.43 | 0.7363 | -377.0 | -458.5 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -8.46 | 191.56 | 44.49 | 251.28 | 0.7342 | -262.0 | -418.3 | |
| 0.00 | 1.43 | 0.00 | 1.04 | -9.06 | 191.60 | 44.54 | 250.53 | 0.7369 | -657.0 | -426.4 | |
| 0.00 | 1.16 | 0.00 | 0.84 | -8.70 | 191.42 | 44.35 | 250.92 | 0.7335 | -361.0 | -433.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
