SDO HMI 2014-09-06 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.85 | 0.00 | 7.15 | -19.85 | 168.37 | 21.85 | 218.20 | 0.5698 | 630.3 | 512.5 | |
|
previous
or next observation for the same group /

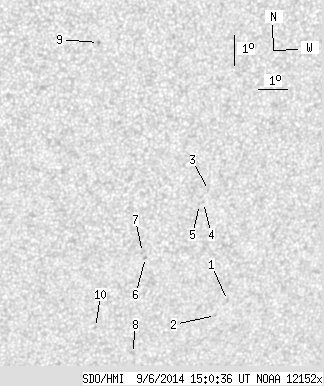

back to the solar disc SDO HMI 2014-09-06 15:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.83 | -21.43 | 170.94 | 24.42 | 219.37 | 0.6091 | 677.0 | 604.8 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -21.92 | 170.60 | 24.08 | 218.43 | 0.6112 | 516.0 | 461.2 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -17.64 | 169.68 | 23.17 | 222.37 | 0.5585 | 703.0 | 578.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -18.04 | 169.56 | 23.05 | 221.73 | 0.5614 | 655.0 | 508.6 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -18.10 | 169.43 | 22.92 | 221.50 | 0.5608 | 731.0 | 585.9 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -19.79 | 167.81 | 21.29 | 217.43 | 0.5642 | 655.0 | 584.9 | |
| 0.00 | 2.14 | 0.00 | 1.28 | -19.62 | 167.68 | 21.16 | 217.47 | 0.5612 | 597.0 | 551.5 | |
| 0.00 | 2.05 | 0.00 | 1.27 | -23.09 | 167.86 | 21.34 | 213.96 | 0.6015 | 338.0 | 287.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -12.61 | 165.46 | 18.95 | 223.60 | 0.4614 | 849.0 | 674.2 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -22.12 | 166.41 | 19.89 | 213.12 | 0.5792 | 582.0 | 448.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
