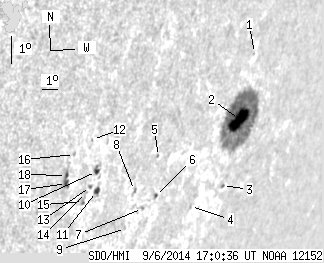

SDO HMI 2014-09-06 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.79 | 178.70 | 37.78 | 224.89 | -14.52 | 209.02 | 63.60 | 250.70 | 0.9194 | 257.2 | 82.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.69 | -12.25 | 210.20 | 64.79 | 253.44 | 0.9241 | 244.0 | 250.3 | |
| 22.93 | 145.88 | 29.96 | 191.32 | -14.34 | 210.16 | 64.74 | 251.23 | 0.9271 | 639.3 | 136.9 | |
| 0.36 | 1.07 | 0.48 | 1.44 | -16.46 | 210.14 | 64.73 | 249.01 | 0.9304 | 150.0 | 128.4 | |
| 0.00 | 1.25 | 0.00 | 1.55 | -16.90 | 208.11 | 62.69 | 247.99 | 0.9187 | 328.0 | 309.8 | |
| 0.00 | 0.62 | 0.00 | 0.68 | -14.93 | 204.98 | 59.56 | 249.16 | 0.8933 | -81.0 | -125.1 | |
| 0.54 | 1.87 | 0.60 | 2.11 | -16.23 | 205.42 | 60.01 | 247.89 | 0.8994 | 465.0 | 464.3 | |
| 0.00 | 1.25 | 0.00 | 1.38 | -16.58 | 204.78 | 59.36 | 247.32 | 0.8956 | -320.0 | -162.8 | |
| 0.00 | 2.14 | 0.00 | 2.29 | -15.91 | 203.95 | 58.54 | 247.78 | 0.8881 | -150.0 | -145.6 | |
| 0.00 | 0.98 | 0.00 | 1.06 | -17.15 | 204.01 | 58.60 | 246.47 | 0.8915 | -414.0 | -359.4 | |
| 1.70 | 4.46 | 1.67 | 4.38 | -15.00 | 201.35 | 55.93 | 247.89 | 0.8656 | -503.0 | -427.3 | |
| 2.14 | 4.28 | 2.13 | 4.27 | -15.68 | 201.62 | 56.21 | 247.25 | 0.8697 | -327.0 | -138.2 | |
| 0.00 | 0.71 | 0.00 | 0.68 | -13.91 | 200.71 | 55.30 | 248.89 | 0.8575 | -420.0 | -309.6 | |
| 0.00 | 1.52 | 0.00 | 1.49 | -15.47 | 201.20 | 55.79 | 247.33 | 0.8657 | -667.0 | -557.3 | |
| 0.00 | 0.71 | 0.00 | 0.70 | -15.65 | 201.05 | 55.63 | 247.08 | 0.8650 | -665.0 | -628.6 | |
| 0.00 | 2.41 | 0.00 | 2.36 | -15.94 | 201.00 | 55.58 | 246.75 | 0.8654 | -660.0 | -561.5 | |
| 0.00 | 1.34 | 0.00 | 1.26 | -14.30 | 199.87 | 54.45 | 248.16 | 0.8515 | -530.0 | -479.5 | |
| 2.14 | 7.67 | 2.02 | 7.23 | -15.22 | 199.78 | 54.36 | 247.10 | 0.8534 | -706.2 | -507.6 | |
| 0.98 | -17.00 | 0.92 | -17.00 | -14.95 | 199.67 | 54.26 | 247.36 | 0.8518 | -604.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
