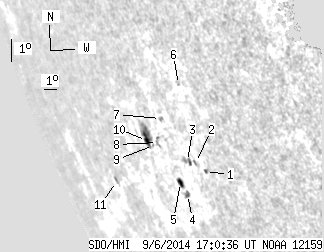

SDO HMI 2014-09-06 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.51 | 40.96 | 9.77 | 62.00 | -20.50 | 78.90 | -66.52 | 114.68 | 0.9462 | -76.6 | -124.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.43 | 0.71 | 1.88 | -20.64 | 82.29 | -63.12 | 115.77 | 0.9285 | 394.5 | 337.6 | |
| 0.00 | 1.70 | 0.00 | 2.28 | -20.41 | 81.74 | -63.67 | 115.37 | 0.9312 | 359.0 | 372.1 | |
| 0.00 | 4.82 | 0.00 | 6.64 | -20.45 | 81.12 | -64.30 | 115.23 | 0.9348 | -17.0 | -5.7 | |
| 0.00 | 3.39 | 0.00 | 4.97 | -21.67 | 80.10 | -65.31 | 116.19 | 0.9424 | 551.0 | 424.2 | |
| 3.03 | 4.55 | 4.46 | 6.68 | -21.29 | 79.87 | -65.54 | 115.74 | 0.9430 | 49.8 | 6.2 | |
| 0.00 | 0.71 | 0.00 | 0.91 | -17.76 | 82.37 | -63.04 | 112.81 | 0.9225 | 339.0 | 295.1 | |
| 0.00 | 1.61 | 0.00 | 2.27 | -19.15 | 80.07 | -65.35 | 113.60 | 0.9384 | -303.0 | -219.8 | |
| 0.00 | 3.30 | 0.00 | 4.93 | -20.06 | 79.10 | -66.32 | 114.26 | 0.9450 | -449.0 | -451.2 | |
| 0.00 | 0.80 | 0.00 | 1.23 | -20.21 | 78.64 | -66.77 | 114.30 | 0.9476 | -423.0 | -456.9 | |
| 2.94 | 16.33 | 4.60 | 25.32 | -20.10 | 78.15 | -67.26 | 114.06 | 0.9499 | -396.0 | -320.7 | |
| 0.00 | 2.32 | 0.00 | 4.89 | -22.07 | 73.21 | -72.20 | 114.84 | 0.9734 | -99.0 | -30.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
