SDO HMI 2014-09-06 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.19 | 96.10 | 19.97 | 51.42 | -14.71 | 149.00 | 3.59 | 189.26 | 0.3801 | -137.4 | 41.6 | |
|
previous
or next observation for the same group /

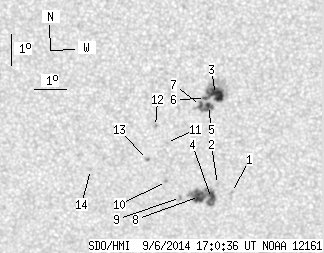

back to the solar disc SDO HMI 2014-09-06 17:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.82 | -16.49 | 149.85 | 4.44 | 190.45 | 0.4106 | -772.0 | -614.7 | |
| 0.00 | 1.52 | 0.00 | 0.82 | -16.22 | 149.40 | 3.99 | 189.53 | 0.4051 | -964.0 | -713.6 | |
| 14.63 | 54.43 | 7.76 | 28.86 | -13.29 | 149.29 | 3.88 | 190.63 | 0.3580 | 1174.5 | 569.4 | |
| 7.49 | 30.78 | 4.07 | 16.70 | -16.68 | 149.22 | 3.81 | 188.92 | 0.4119 | -970.4 | -881.7 | |
| 1.87 | -3.00 | 1.00 | -3.00 | -13.64 | 149.07 | 3.66 | 189.89 | 0.3631 | 909.5 | 999999 | |
| 1.07 | -3.00 | 0.57 | -3.00 | -13.41 | 148.98 | 3.57 | 189.74 | 0.3592 | 1066.5 | 999999 | |
| 1.87 | -3.00 | 1.00 | -3.00 | -13.64 | 148.83 | 3.41 | 189.23 | 0.3624 | 949.7 | 999999 | |
| 10.26 | -4.00 | 5.57 | -4.00 | -16.61 | 148.84 | 3.43 | 188.07 | 0.4099 | -1129.3 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.97 | -16.64 | 148.24 | 2.83 | 186.66 | 0.4091 | -861.0 | -607.7 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -16.11 | 147.79 | 2.38 | 185.75 | 0.3999 | -952.0 | -749.7 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -14.83 | 147.78 | 2.37 | 186.07 | 0.3794 | -771.0 | -614.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.31 | 147.43 | 2.02 | 185.31 | 0.3704 | 796.0 | 682.9 | |
| 0.00 | 1.61 | 0.00 | 0.86 | -15.38 | 147.19 | 1.78 | 184.44 | 0.3874 | -883.0 | -688.2 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -15.70 | 145.40 | -0.01 | 179.98 | 0.3915 | -778.0 | -591.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
