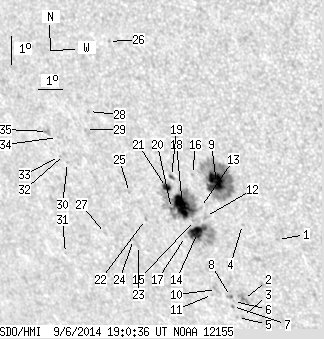

SDO HMI 2014-09-06 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.75 | 256.94 | 46.21 | 180.98 | -19.64 | 107.22 | -37.08 | 127.03 | 0.7136 | 628.8 | 377.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.85 | -20.57 | 110.30 | -34.01 | 130.45 | 0.6904 | 514.0 | 365.9 | |
| 0.00 | 6.96 | 0.00 | 4.99 | -22.78 | 108.33 | -35.98 | 131.44 | 0.7249 | 794.0 | 654.1 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -23.39 | 108.09 | -36.21 | 131.94 | 0.7312 | 535.0 | 450.7 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -20.16 | 109.03 | -35.27 | 128.97 | 0.6996 | 550.0 | 460.5 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -23.44 | 107.87 | -36.43 | 131.83 | 0.7336 | 433.0 | 366.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -22.88 | 107.89 | -36.42 | 131.22 | 0.7295 | 595.0 | 560.7 | |
| 0.00 | 1.16 | 0.00 | 0.84 | -23.06 | 107.79 | -36.52 | 131.35 | 0.7317 | 625.0 | 516.5 | |
| 0.00 | 1.96 | 0.00 | 1.42 | -22.72 | 107.82 | -36.49 | 130.99 | 0.7290 | 733.0 | 654.8 | |
| 23.46 | 93.05 | 16.15 | 63.96 | -18.80 | 108.35 | -35.95 | 126.84 | 0.6968 | 1010.6 | 456.4 | |
| 0.00 | 2.23 | 0.00 | 1.62 | -22.51 | 107.31 | -37.00 | 130.39 | 0.7322 | 619.0 | 540.7 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -22.71 | 107.08 | -37.22 | 130.44 | 0.7355 | 509.0 | 465.7 | |
| 0.00 | 3.03 | 0.00 | 2.13 | -20.00 | 107.60 | -36.70 | 127.72 | 0.7123 | 374.0 | 394.6 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -19.71 | 107.48 | -36.83 | 127.28 | 0.7115 | 595.0 | 501.0 | |
| 13.74 | 40.77 | 9.79 | 28.98 | -20.58 | 107.11 | -37.19 | 128.04 | 0.7209 | 784.4 | 435.2 | |
| 0.00 | 2.14 | 0.00 | 1.52 | -20.18 | 107.11 | -37.20 | 127.57 | 0.7182 | 517.0 | 506.5 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -18.61 | 107.45 | -36.86 | 125.94 | 0.7045 | 497.0 | 502.7 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -20.76 | 106.57 | -37.73 | 127.86 | 0.7272 | 298.0 | 224.1 | |
| 23.02 | 79.67 | 16.35 | 56.60 | -19.73 | 106.75 | -37.56 | 126.79 | 0.7188 | 984.0 | 350.9 | |
| 0.98 | 2.41 | 0.69 | 1.70 | -18.74 | 106.57 | -37.74 | 125.49 | 0.7141 | 678.1 | 607.9 | |
| 0.27 | -18.00 | 0.19 | -18.00 | -19.84 | 106.27 | -38.04 | 126.58 | 0.7241 | 225.0 | 999999 | |
| 4.28 | -18.00 | 3.04 | -18.00 | -19.14 | 106.26 | -38.04 | 125.74 | 0.7196 | 600.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.91 | -20.31 | 105.05 | -39.25 | 126.30 | 0.7386 | 581.0 | 443.0 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -21.24 | 104.47 | -39.84 | 126.98 | 0.7498 | 164.0 | 253.4 | |
| 0.00 | 1.25 | 0.00 | 0.93 | -21.05 | 104.32 | -39.99 | 126.67 | 0.7500 | 532.0 | 441.6 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -19.44 | 104.65 | -39.66 | 125.02 | 0.7371 | -394.0 | -410.4 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -14.44 | 105.06 | -39.25 | 119.16 | 0.7040 | 625.0 | 544.2 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -20.95 | 103.15 | -41.15 | 125.81 | 0.7601 | -430.0 | -326.7 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -16.83 | 103.67 | -40.64 | 121.29 | 0.7318 | -398.0 | -410.1 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -17.45 | 103.38 | -40.93 | 121.86 | 0.7381 | -255.0 | -287.3 | |
| 0.00 | 0.89 | 0.00 | 0.67 | -18.64 | 102.26 | -42.04 | 122.60 | 0.7555 | -529.0 | -459.7 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -21.81 | 101.09 | -43.22 | 125.53 | 0.7835 | -429.0 | -399.0 | |
| 0.00 | 1.70 | 0.00 | 1.27 | -18.38 | 102.21 | -42.09 | 122.27 | 0.7546 | -403.0 | -414.7 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -18.47 | 101.97 | -42.34 | 122.23 | 0.7574 | -553.0 | -483.1 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -17.83 | 102.08 | -42.23 | 121.54 | 0.7530 | -694.0 | -618.8 | |
| 0.00 | 3.57 | 0.00 | 2.69 | -17.66 | 101.69 | -42.61 | 121.12 | 0.7558 | -736.0 | -503.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
