SDO HMI 2014-09-06 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.89 | 641.43 | 95.27 | 581.64 | 14.98 | 86.72 | -57.59 | 76.79 | 0.8396 | 243.1 | -122.9 | |
|
previous
or next observation for the same group /

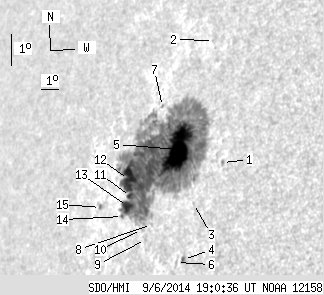

back to the solar disc SDO HMI 2014-09-06 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.57 | 15.37 | 90.02 | -54.29 | 76.23 | 0.8083 | -394.0 | -273.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 18.96 | 87.91 | -56.40 | 71.98 | 0.8305 | 321.0 | 386.7 | |
| 0.00 | 0.89 | 0.00 | 0.76 | 13.99 | 88.95 | -55.36 | 77.96 | 0.8184 | 410.0 | 324.0 | |
| 0.62 | 1.70 | 0.54 | 1.45 | 12.27 | 88.98 | -55.33 | 80.07 | 0.8180 | -642.6 | -492.8 | |
| 69.76 | 628.85 | 62.08 | 570.39 | 15.51 | 87.51 | -56.80 | 76.15 | 0.8325 | 851.3 | -120.4 | |
| 0.00 | 1.34 | 0.00 | 1.16 | 12.14 | 88.64 | -55.67 | 80.22 | 0.8214 | -332.0 | -312.7 | |
| 0.00 | 1.07 | 0.00 | 0.99 | 16.70 | 86.02 | -58.28 | 74.79 | 0.8464 | 479.0 | 446.2 | |
| 0.00 | 1.07 | 0.00 | 0.97 | 13.13 | 86.89 | -57.42 | 79.02 | 0.8380 | -472.0 | -446.9 | |
| 0.00 | 0.89 | 0.00 | 0.81 | 12.65 | 86.71 | -57.59 | 79.59 | 0.8397 | -524.0 | -411.3 | |
| 0.00 | 1.78 | 0.00 | 1.63 | 12.92 | 86.38 | -57.93 | 79.27 | 0.8427 | -661.0 | -468.5 | |
| 2.85 | -5.00 | 2.68 | -5.00 | 13.84 | 85.37 | -58.94 | 78.18 | 0.8518 | -913.8 | 999999 | |
| 20.61 | -5.00 | 19.53 | -5.00 | 14.33 | 85.04 | -59.27 | 77.61 | 0.8547 | -845.8 | 999999 | |
| 9.72 | -5.00 | 9.15 | -5.00 | 13.52 | 85.31 | -58.99 | 78.55 | 0.8523 | -732.1 | 999999 | |
| 0.62 | -5.00 | 0.59 | -5.00 | 13.19 | 85.14 | -59.17 | 78.94 | 0.8539 | -359.4 | 999999 | |
| 0.71 | 1.70 | 0.70 | 1.67 | 13.32 | 83.72 | -60.59 | 78.77 | 0.8662 | -491.5 | -416.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
