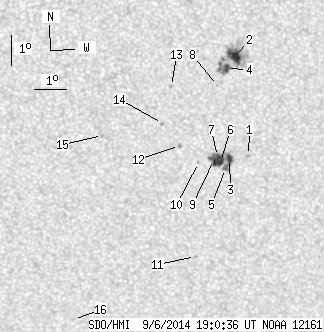

SDO HMI 2014-09-06 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.65 | 85.82 | 17.56 | 46.06 | -14.83 | 149.05 | 4.74 | 192.16 | 0.3857 | -113.3 | 113.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 19:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.82 | -16.46 | 149.94 | 5.64 | 193.21 | 0.4142 | -689.0 | -539.9 | |
| 11.60 | 47.19 | 6.16 | 25.07 | -13.23 | 149.43 | 5.12 | 193.97 | 0.3615 | 1202.4 | 597.2 | |
| 4.10 | 28.46 | 2.23 | 15.47 | -16.55 | 149.35 | 5.04 | 191.80 | 0.4135 | -1069.3 | -821.9 | |
| 4.01 | -2.00 | 2.14 | -2.00 | -13.61 | 149.19 | 4.88 | 193.09 | 0.3667 | 921.0 | 999999 | |
| 0.98 | -3.00 | 0.53 | -3.00 | -16.88 | 149.23 | 4.92 | 191.37 | 0.4183 | -751.8 | 999999 | |
| 3.84 | -3.00 | 2.09 | -3.00 | -16.65 | 149.06 | 4.76 | 191.11 | 0.4141 | -1108.9 | 999999 | |
| 3.03 | -3.00 | 1.65 | -3.00 | -16.48 | 148.96 | 4.66 | 190.96 | 0.4112 | -1280.5 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -14.16 | 148.91 | 4.61 | 192.06 | 0.3744 | 622.0 | 511.7 | |
| 5.09 | -3.00 | 2.76 | -3.00 | -16.61 | 148.84 | 4.53 | 190.62 | 0.4129 | -1013.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -16.67 | 148.37 | 4.06 | 189.51 | 0.4125 | -778.0 | -602.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -19.82 | 148.34 | 4.04 | 188.28 | 0.4615 | -559.0 | -448.4 | |
| 0.00 | 1.61 | 0.00 | 0.87 | -16.11 | 147.76 | 3.45 | 188.31 | 0.4021 | -904.0 | -731.9 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.18 | 147.48 | 3.17 | 188.36 | 0.3706 | 900.0 | 680.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -15.38 | 147.21 | 2.91 | 187.25 | 0.3893 | -900.0 | -735.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -15.76 | 145.33 | 1.03 | 182.53 | 0.3929 | -753.0 | -650.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.96 | 144.42 | 0.11 | 180.22 | 0.4899 | 685.0 | 543.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
