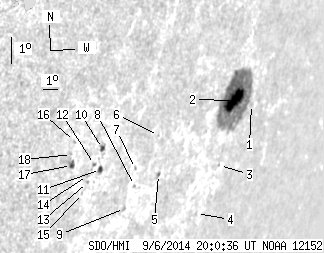

SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.31 | 159.34 | 36.22 | 215.92 | -14.55 | 209.20 | 65.44 | 251.15 | 0.9310 | 232.8 | 113.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 2.68 | -14.71 | 211.61 | 67.86 | 251.61 | 0.9456 | -177.0 | -183.4 | |
| 22.04 | 134.80 | 30.77 | 188.80 | -14.39 | 210.04 | 66.28 | 251.56 | 0.9364 | 574.2 | 167.8 | |
| 0.00 | 0.54 | 0.00 | 0.77 | -16.50 | 210.19 | 66.44 | 249.42 | 0.9403 | 70.0 | 67.2 | |
| 0.00 | 0.89 | 0.00 | 1.26 | -17.96 | 209.41 | 65.66 | 247.70 | 0.9382 | 102.0 | 75.2 | |
| 0.45 | 1.43 | 0.53 | 1.71 | -16.24 | 205.59 | 61.83 | 248.42 | 0.9119 | 384.6 | 342.2 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -14.91 | 204.89 | 61.14 | 249.64 | 0.9045 | -73.0 | -81.0 | |
| 0.00 | 0.80 | 0.00 | 0.90 | -15.85 | 203.88 | 60.12 | 248.33 | 0.8994 | -194.0 | -150.0 | |
| 0.00 | 1.07 | 0.00 | 1.22 | -16.43 | 204.11 | 60.35 | 247.78 | 0.9023 | -441.0 | -373.5 | |
| 0.00 | 1.61 | 0.00 | 1.83 | -17.15 | 203.85 | 60.09 | 246.94 | 0.9020 | -465.0 | -377.5 | |
| 1.43 | 3.21 | 1.47 | 3.32 | -14.93 | 201.43 | 57.68 | 248.55 | 0.8793 | -375.1 | -323.4 | |
| 1.78 | 3.30 | 1.86 | 3.45 | -15.63 | 201.62 | 57.87 | 247.85 | 0.8824 | -193.9 | -106.2 | |
| 0.00 | 1.34 | 0.00 | 1.38 | -15.42 | 201.17 | 57.42 | 247.94 | 0.8785 | -639.0 | -537.4 | |
| 0.00 | 1.07 | 0.00 | 1.10 | -15.98 | 201.01 | 57.26 | 247.27 | 0.8786 | -541.0 | -489.2 | |
| 0.00 | 1.43 | 0.00 | 1.46 | -15.75 | 200.91 | 57.15 | 247.49 | 0.8772 | -387.0 | -405.4 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -16.32 | 200.87 | 57.12 | 246.85 | 0.8785 | -479.0 | -447.7 | |
| 0.00 | 0.98 | 0.00 | 0.96 | -14.51 | 199.66 | 55.90 | 248.42 | 0.8641 | -540.0 | -517.8 | |
| 1.61 | 3.57 | 1.59 | 3.53 | -15.30 | 199.80 | 56.05 | 247.60 | 0.8674 | -655.4 | -544.3 | |
| 0.00 | 0.98 | 0.00 | 0.96 | -14.93 | 199.65 | 55.90 | 247.96 | 0.8652 | -692.0 | -513.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
