SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.43 | 40.24 | 0.79 | 22.60 | -17.21 | 157.67 | 13.92 | 209.07 | 0.4733 | 167.3 | 137.4 | |
|
previous
or next observation for the same group /

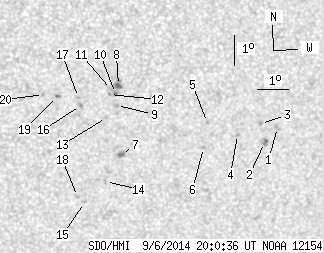

back to the solar disc SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.77 | 0.00 | 1.59 | -17.39 | 162.10 | 18.35 | 216.17 | 0.5110 | 690.0 | 607.7 | |
| 0.00 | 3.66 | 0.00 | 2.11 | -17.88 | 161.71 | 17.96 | 215.03 | 0.5134 | 861.0 | 780.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.24 | 161.52 | 17.76 | 215.49 | 0.5040 | 834.0 | 665.5 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -17.57 | 160.79 | 17.03 | 213.97 | 0.5018 | 706.0 | 595.1 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -17.13 | 159.75 | 16.00 | 212.84 | 0.4877 | 875.0 | 658.2 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.96 | 159.70 | 15.94 | 211.81 | 0.4978 | 753.0 | 620.8 | |
| 0.00 | 4.19 | 0.00 | 2.36 | -18.10 | 157.02 | 13.26 | 207.16 | 0.4796 | -894.0 | -805.3 | |
| 1.43 | 5.17 | 0.79 | 2.86 | -15.81 | 156.76 | 13.00 | 209.13 | 0.4466 | 1028.8 | 821.3 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -16.46 | 156.74 | 12.98 | 208.36 | 0.4554 | 914.0 | 825.3 | |
| 0.00 | 2.14 | 0.00 | 1.19 | -16.07 | 156.68 | 12.92 | 208.69 | 0.4496 | 1077.0 | 887.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -15.93 | 156.54 | 12.79 | 208.58 | 0.4467 | 502.0 | 527.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -16.09 | 156.49 | 12.73 | 208.30 | 0.4485 | 850.0 | 753.2 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -16.85 | 156.44 | 12.69 | 207.40 | 0.4585 | 691.0 | 450.4 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -18.99 | 156.56 | 12.81 | 205.51 | 0.4886 | -847.0 | -700.2 | |
| 0.00 | 1.52 | 0.00 | 0.86 | -19.68 | 155.92 | 12.17 | 203.79 | 0.4941 | -616.0 | -506.6 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -16.43 | 155.57 | 11.82 | 206.21 | 0.4466 | -947.0 | -756.4 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.16 | 155.49 | 11.74 | 206.33 | 0.4424 | -854.0 | -710.3 | |
| 0.00 | 2.41 | 0.00 | 1.37 | -19.47 | 155.68 | 11.93 | 203.55 | 0.4897 | -537.0 | -501.1 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -16.11 | 154.81 | 11.06 | 205.06 | 0.4371 | -702.0 | -547.7 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.03 | 154.36 | 10.61 | 204.23 | 0.4330 | -858.0 | -665.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
