SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.44 | 246.60 | 47.06 | 172.14 | -19.65 | 107.31 | -36.44 | 127.50 | 0.7075 | 733.9 | 398.3 | |
|
previous
or next observation for the same group /

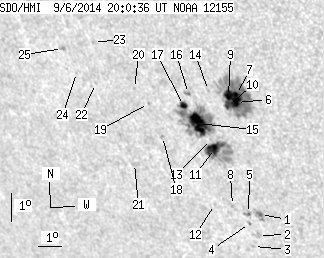

back to the solar disc SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 5.89 | 0.44 | 4.19 | -22.70 | 108.36 | -35.39 | 131.80 | 0.7190 | 838.1 | 684.7 | |
| 0.00 | 2.50 | 0.00 | 1.80 | -23.45 | 108.05 | -35.70 | 132.39 | 0.7273 | 506.0 | 456.0 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -23.86 | 107.71 | -36.04 | 132.59 | 0.7332 | 306.0 | 274.0 | |
| 0.00 | 0.89 | 0.00 | 0.64 | -23.05 | 107.81 | -35.95 | 131.77 | 0.7265 | 549.0 | 419.8 | |
| 0.36 | 2.41 | 0.26 | 1.72 | -22.70 | 107.87 | -35.88 | 131.43 | 0.7234 | 830.5 | 663.7 | |
| 9.63 | 92.60 | 6.58 | 63.15 | -18.88 | 108.45 | -35.31 | 127.43 | 0.6909 | 1088.3 | 489.6 | |
| 3.39 | -6.00 | 2.31 | -6.00 | -18.61 | 108.51 | -35.24 | 127.15 | 0.6883 | 1291.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -22.47 | 107.30 | -36.46 | 130.74 | 0.7270 | 426.0 | 449.3 | |
| 8.03 | -6.00 | 5.49 | -6.00 | -18.67 | 108.18 | -35.57 | 126.97 | 0.6920 | 887.0 | 999999 | |
| 3.30 | -6.00 | 2.27 | -6.00 | -19.01 | 108.10 | -35.65 | 127.32 | 0.6952 | 603.2 | 999999 | |
| 14.18 | 44.52 | 10.02 | 31.40 | -20.53 | 107.14 | -36.61 | 128.41 | 0.7151 | 813.9 | 371.8 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -22.49 | 106.55 | -37.20 | 130.22 | 0.7339 | 231.0 | 209.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -20.24 | 107.06 | -36.69 | 128.00 | 0.7138 | 623.0 | 563.0 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -18.56 | 107.42 | -36.33 | 126.27 | 0.6990 | 530.0 | 444.1 | |
| 23.73 | 81.99 | 16.73 | 57.79 | -19.72 | 106.72 | -37.03 | 127.15 | 0.7137 | 985.6 | 357.5 | |
| 0.36 | 2.68 | 0.25 | 1.87 | -18.73 | 106.58 | -37.17 | 125.87 | 0.7084 | 786.0 | 634.8 | |
| 3.84 | -15.00 | 2.71 | -15.00 | -19.16 | 106.27 | -37.49 | 126.16 | 0.7143 | 620.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.91 | -20.29 | 105.08 | -38.67 | 126.68 | 0.7330 | 682.0 | 526.0 | |
| 0.00 | 1.07 | 0.00 | 0.77 | -19.21 | 104.82 | -38.93 | 125.23 | 0.7287 | -470.0 | -381.5 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -18.74 | 104.38 | -39.38 | 124.39 | 0.7303 | 603.0 | 466.0 | |
| 0.00 | 1.43 | 0.00 | 1.07 | -21.34 | 103.58 | -40.17 | 126.88 | 0.7535 | -48.0 | -189.6 | |
| 0.00 | 0.45 | 0.00 | 0.33 | -18.72 | 102.75 | -41.00 | 123.32 | 0.7459 | -448.0 | -439.6 | |
| 0.00 | 0.89 | 0.00 | 0.65 | -17.33 | 103.06 | -40.69 | 121.86 | 0.7351 | -583.0 | -495.9 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -18.41 | 102.03 | -41.72 | 122.53 | 0.7512 | -436.0 | -488.7 | |
| 0.00 | 2.68 | 0.00 | 2.00 | -17.65 | 101.66 | -42.09 | 121.41 | 0.7507 | -668.0 | -547.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
