SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.71 | 863.67 | 137.66 | 712.42 | -13.74 | 94.57 | -49.18 | 113.28 | 0.8010 | -120.2 | -173.7 | |
|
previous
or next observation for the same group /

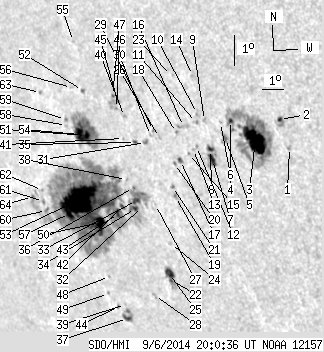

back to the solar disc SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 1.13 | -11.74 | 102.68 | -41.07 | 114.63 | 0.7100 | 840.0 | 640.4 | |
| 1.61 | 6.24 | 1.12 | 4.37 | -10.87 | 102.42 | -41.33 | 113.36 | 0.7088 | -644.8 | -476.6 | |
| 37.20 | 137.21 | 26.66 | 98.48 | -11.60 | 101.29 | -42.46 | 113.73 | 0.7247 | 1045.8 | 348.6 | |
| 1.43 | -3.00 | 1.04 | -3.00 | -11.09 | 100.33 | -43.42 | 112.59 | 0.7329 | 743.2 | 999999 | |
| 1.16 | 4.64 | 0.85 | 3.40 | -11.69 | 100.00 | -43.75 | 113.20 | 0.7390 | 694.5 | 503.5 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -11.19 | 99.89 | -43.86 | 112.51 | 0.7382 | 506.0 | 358.8 | |
| 4.82 | 16.59 | 3.59 | 12.37 | -12.42 | 99.29 | -44.46 | 113.77 | 0.7498 | 675.1 | 420.8 | |
| 2.23 | -7.00 | 1.66 | -7.00 | -12.10 | 99.27 | -44.48 | 113.37 | 0.7486 | 704.3 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.65 | -11.19 | 99.20 | -44.55 | 112.19 | 0.7456 | 651.0 | 502.5 | |
| 0.00 | 2.14 | 0.00 | 1.59 | -10.99 | 98.93 | -44.82 | 111.82 | 0.7476 | 395.0 | 335.7 | |
| 0.00 | 1.61 | 0.00 | 1.20 | -11.29 | 98.83 | -44.92 | 112.14 | 0.7499 | 599.0 | 449.2 | |
| 0.00 | 1.43 | 0.00 | 1.07 | -12.06 | 98.67 | -45.09 | 113.03 | 0.7548 | 514.0 | 339.2 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -12.17 | 98.51 | -45.24 | 113.10 | 0.7569 | 490.0 | 405.2 | |
| 0.00 | 1.70 | 0.00 | 1.25 | -9.79 | 98.94 | -44.81 | 110.30 | 0.7429 | 616.0 | 454.2 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -12.32 | 98.26 | -45.50 | 113.16 | 0.7602 | 445.0 | 361.6 | |
| 0.00 | 5.17 | 0.00 | 3.91 | -11.47 | 98.22 | -45.53 | 112.09 | 0.7571 | 666.0 | 375.3 | |
| 1.34 | 3.03 | 1.03 | 2.33 | -12.58 | 97.84 | -45.91 | 113.29 | 0.7655 | 570.4 | 407.5 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -11.69 | 97.86 | -45.89 | 112.21 | 0.7617 | 410.0 | 309.3 | |
| 0.00 | 2.05 | 0.00 | 1.60 | -13.79 | 97.32 | -46.44 | 114.51 | 0.7757 | 709.0 | 554.2 | |
| 0.00 | 1.52 | 0.00 | 1.17 | -12.71 | 97.54 | -46.21 | 113.31 | 0.7691 | 512.0 | 377.9 | |
| 0.36 | 1.61 | 0.28 | 1.25 | -13.47 | 97.26 | -46.49 | 114.10 | 0.7749 | 697.5 | 518.8 | |
| 0.98 | 15.26 | 0.80 | 12.44 | -16.60 | 96.30 | -47.45 | 117.35 | 0.7971 | 582.9 | 261.0 | |
| 0.00 | 0.54 | 0.00 | 0.40 | -9.88 | 98.00 | -45.75 | 110.01 | 0.7533 | 407.0 | 418.8 | |
| 0.00 | 1.61 | 0.00 | 1.29 | -15.37 | 96.65 | -47.11 | 116.07 | 0.7887 | 446.0 | 364.3 | |
| 6.24 | -22.00 | 5.09 | -22.00 | -16.38 | 96.28 | -47.47 | 117.08 | 0.7963 | 705.6 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.24 | -11.93 | 97.05 | -46.70 | 112.14 | 0.7710 | 606.0 | 464.1 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -14.14 | 96.31 | -47.45 | 114.47 | 0.7871 | 491.0 | 449.3 | |
| 0.00 | 2.41 | 0.00 | 2.02 | -17.19 | 95.30 | -48.46 | 117.56 | 0.8087 | 425.0 | 333.7 | |
| 0.00 | 1.16 | 0.00 | 0.90 | -11.73 | 96.82 | -46.93 | 111.79 | 0.7726 | 662.0 | 643.4 | |
| 0.00 | 1.16 | 0.00 | 0.91 | -11.90 | 96.65 | -47.11 | 111.93 | 0.7751 | 355.0 | 333.9 | |
| 0.54 | 2.77 | 0.42 | 2.17 | -12.15 | 96.36 | -47.39 | 112.11 | 0.7789 | 364.0 | 256.8 | |
| 0.00 | 1.16 | 0.00 | 0.94 | -14.26 | 95.66 | -48.09 | 114.33 | 0.7938 | 435.0 | 407.6 | |
| 3.21 | 44.69 | 2.61 | 36.42 | -14.09 | 95.43 | -48.32 | 114.03 | 0.7954 | 711.8 | 78.9 | |
| 2.32 | -33.00 | 1.90 | -33.00 | -14.36 | 95.31 | -48.45 | 114.29 | 0.7976 | 728.1 | 999999 | |
| 0.89 | 2.05 | 0.71 | 1.63 | -12.20 | 95.89 | -47.87 | 111.96 | 0.7838 | 271.7 | 162.1 | |
| 0.36 | -33.00 | 0.29 | -33.00 | -13.68 | 95.41 | -48.35 | 113.53 | 0.7940 | -702.5 | 999999 | |
| 3.21 | 9.99 | 2.81 | 8.73 | -18.11 | 93.63 | -50.12 | 117.85 | 0.8271 | -554.5 | -577.7 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -13.45 | 95.14 | -48.61 | 113.14 | 0.7958 | -707.0 | -638.8 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -17.64 | 93.72 | -50.04 | 117.36 | 0.8246 | -469.0 | -405.9 | |
| 0.00 | 1.43 | 0.00 | 1.13 | -11.40 | 95.56 | -48.19 | 110.87 | 0.7842 | 561.0 | 405.2 | |
| 0.00 | 0.89 | 0.00 | 0.72 | -12.12 | 95.35 | -48.41 | 111.65 | 0.7889 | 191.0 | 277.8 | |
| 1.52 | 472.91 | 1.26 | 406.93 | -14.36 | 94.69 | -49.06 | 114.02 | 0.8034 | 312.5 | -344.5 | |
| 2.85 | -42.00 | 2.38 | -42.00 | -14.61 | 94.42 | -49.33 | 114.20 | 0.8069 | 460.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 1.02 | -17.75 | 93.33 | -50.43 | 117.30 | 0.8283 | -524.0 | -478.8 | |
| 0.62 | 8.12 | 0.50 | 6.49 | -10.92 | 95.35 | -48.40 | 110.20 | 0.7847 | 429.7 | -122.4 | |
| 0.00 | 1.07 | 0.00 | 0.86 | -11.18 | 95.24 | -48.51 | 110.47 | 0.7867 | 287.0 | 201.6 | |
| 0.36 | -45.00 | 0.28 | -45.00 | -10.78 | 95.15 | -48.61 | 109.95 | 0.7863 | 224.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.93 | -16.77 | 93.25 | -50.50 | 116.17 | 0.8254 | -482.0 | -523.2 | |
| 0.00 | 0.80 | 0.00 | 0.71 | -17.36 | 92.98 | -50.78 | 116.71 | 0.8299 | -639.0 | -640.4 | |
| 9.90 | -42.00 | 8.48 | -42.00 | -15.00 | 93.42 | -50.33 | 114.23 | 0.8175 | 282.7 | 999999 | |
| 4.55 | 62.09 | 3.80 | 51.77 | -12.20 | 93.56 | -50.19 | 111.03 | 0.8066 | -1077.5 | -537.7 | |
| 0.54 | 1.78 | 0.44 | 1.47 | -10.76 | 93.73 | -50.03 | 109.38 | 0.8003 | -704.2 | -549.8 | |
| 63.70 | -42.00 | 55.23 | -42.00 | -14.35 | 92.59 | -51.16 | 113.14 | 0.8228 | -1046.4 | 999999 | |
| 9.99 | -51.00 | 8.39 | -51.00 | -12.20 | 93.22 | -50.53 | 110.90 | 0.8098 | -666.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -9.23 | 93.62 | -50.13 | 107.51 | 0.7966 | -427.0 | -352.7 | |
| 0.00 | 1.34 | 0.00 | 1.11 | -10.72 | 93.20 | -50.55 | 109.14 | 0.8053 | -592.0 | -406.3 | |
| 5.53 | -42.00 | 4.90 | -42.00 | -14.87 | 91.92 | -51.84 | 113.46 | 0.8306 | -612.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.06 | -11.98 | 92.64 | -51.11 | 110.41 | 0.8146 | -323.0 | -214.0 | |
| 0.00 | 1.61 | 0.00 | 1.36 | -11.79 | 92.65 | -51.11 | 110.19 | 0.8140 | -473.0 | -382.1 | |
| 0.80 | 23.73 | 0.73 | 21.76 | -14.89 | 90.72 | -53.03 | 113.03 | 0.8411 | -467.0 | 76.9 | |
| 0.00 | 1.78 | 0.00 | 1.62 | -14.61 | 90.66 | -53.09 | 112.69 | 0.8408 | -405.0 | -296.5 | |
| 0.00 | 0.98 | 0.00 | 0.89 | -14.25 | 90.74 | -53.02 | 112.31 | 0.8390 | -405.0 | -399.5 | |
| 0.00 | 1.43 | 0.00 | 1.23 | -11.04 | 91.59 | -52.16 | 108.94 | 0.8217 | -528.0 | -464.9 | |
| 0.45 | -60.00 | 0.41 | -60.00 | -14.50 | 90.12 | -53.63 | 112.37 | 0.8451 | -65.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
