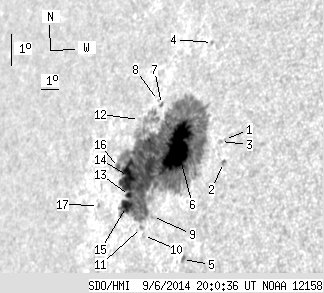

SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.46 | 638.21 | 98.17 | 570.52 | 15.03 | 86.64 | -57.12 | 76.73 | 0.8353 | 224.1 | -115.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.59 | 16.03 | 89.85 | -53.90 | 75.39 | 0.8047 | -280.0 | -235.1 | |
| 0.00 | 2.14 | 0.00 | 1.77 | 15.33 | 90.06 | -53.69 | 76.24 | 0.8023 | -443.0 | -304.6 | |
| 0.00 | 1.78 | 0.00 | 1.49 | 15.94 | 89.67 | -54.08 | 75.50 | 0.8065 | 255.0 | 201.1 | |
| 0.00 | 1.52 | 0.00 | 1.32 | 18.86 | 87.92 | -55.83 | 72.05 | 0.8252 | 561.0 | 437.8 | |
| 0.00 | 2.68 | 0.00 | 2.26 | 12.23 | 88.92 | -54.83 | 80.12 | 0.8131 | -768.0 | -602.9 | |
| 71.46 | 619.93 | 62.74 | 554.43 | 15.54 | 87.46 | -56.30 | 76.11 | 0.8278 | 884.8 | -112.3 | |
| 0.45 | 1.78 | 0.41 | 1.63 | 16.72 | 86.00 | -57.76 | 74.74 | 0.8417 | 344.8 | 321.3 | |
| 0.00 | 0.89 | 0.00 | 0.82 | 16.82 | 85.77 | -57.99 | 74.63 | 0.8438 | 261.0 | 230.2 | |
| 0.00 | 1.16 | 0.00 | 1.03 | 13.34 | 86.89 | -56.87 | 78.77 | 0.8328 | -37.0 | -125.1 | |
| 0.00 | 1.61 | 0.00 | 1.44 | 12.73 | 86.59 | -57.16 | 79.51 | 0.8356 | -720.0 | -580.6 | |
| 0.00 | 1.87 | 0.00 | 1.69 | 12.95 | 86.39 | -57.36 | 79.24 | 0.8375 | -561.0 | -511.3 | |
| 0.00 | 0.89 | 0.00 | 0.84 | 16.15 | 84.94 | -58.81 | 75.46 | 0.8510 | -281.0 | -290.9 | |
| 2.94 | -6.00 | 2.73 | -6.00 | 13.83 | 85.35 | -58.40 | 78.19 | 0.8470 | -899.8 | 999999 | |
| 23.55 | -6.00 | 21.99 | -6.00 | 14.39 | 85.07 | -58.69 | 77.53 | 0.8496 | -872.1 | 999999 | |
| 9.01 | -6.00 | 8.35 | -6.00 | 13.49 | 85.31 | -58.44 | 78.60 | 0.8474 | -764.6 | 999999 | |
| 2.05 | -6.00 | 1.95 | -6.00 | 14.59 | 84.37 | -59.39 | 77.30 | 0.8558 | -385.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.21 | 13.34 | 83.65 | -60.10 | 78.76 | 0.8620 | -524.0 | -448.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
