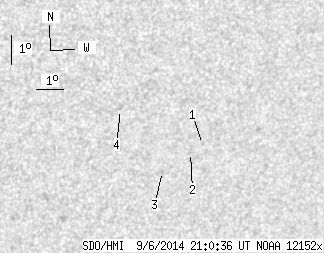

SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.74 | 0.00 | 2.38 | -21.26 | 170.18 | 26.98 | 222.30 | 0.6303 | 634.2 | 535.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.46 | -21.12 | 171.25 | 28.05 | 223.56 | 0.6388 | 651.0 | 505.5 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -21.36 | 170.86 | 27.66 | 222.88 | 0.6376 | 626.0 | 505.5 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -21.96 | 169.96 | 26.76 | 221.29 | 0.6351 | 657.0 | 567.4 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -19.73 | 168.04 | 24.84 | 221.77 | 0.5958 | 603.0 | 561.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
