SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166.86 | 860.38 | 133.98 | 700.36 | -13.73 | 94.66 | -48.54 | 113.54 | 0.7947 | -121.4 | -196.0 | |
|
previous
or next observation for the same group /

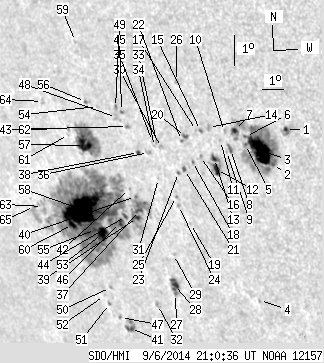

back to the solar disc SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 7.05 | 0.93 | 4.88 | -10.88 | 102.48 | -40.72 | 113.70 | 0.7019 | -712.4 | -409.2 | |
| 0.80 | 147.83 | 0.57 | 105.06 | -12.06 | 101.74 | -41.46 | 114.84 | 0.7158 | 404.1 | 317.7 | |
| 37.92 | -2.00 | 26.92 | -2.00 | -11.65 | 101.32 | -41.88 | 114.09 | 0.7185 | 1043.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.94 | -16.59 | 100.12 | -43.08 | 119.58 | 0.7550 | -633.0 | -569.1 | |
| 0.54 | -2.00 | 0.38 | -2.00 | -11.51 | 100.72 | -42.48 | 113.60 | 0.7245 | 358.2 | 999999 | |
| 0.27 | -2.00 | 0.19 | -2.00 | -11.25 | 100.77 | -42.43 | 113.29 | 0.7228 | 619.0 | 999999 | |
| 2.41 | -2.00 | 1.73 | -2.00 | -11.10 | 100.33 | -42.87 | 112.88 | 0.7269 | 714.8 | 999999 | |
| 1.34 | 3.75 | 0.97 | 2.72 | -11.73 | 100.04 | -43.16 | 113.54 | 0.7328 | 723.3 | 523.6 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -11.81 | 99.86 | -43.34 | 113.55 | 0.7352 | 382.0 | 341.0 | |
| 0.00 | 1.78 | 0.00 | 1.29 | -11.17 | 99.90 | -43.30 | 112.76 | 0.7320 | 470.0 | 340.6 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -11.47 | 99.67 | -43.53 | 113.04 | 0.7358 | 410.0 | 385.2 | |
| 5.00 | 16.59 | 3.69 | 12.24 | -12.43 | 99.30 | -43.90 | 114.06 | 0.7439 | 697.1 | 473.7 | |
| 2.14 | -12.00 | 1.58 | -12.00 | -12.08 | 99.29 | -43.91 | 113.62 | 0.7425 | 696.2 | 999999 | |
| 0.00 | 2.94 | 0.00 | 2.16 | -11.10 | 99.22 | -43.98 | 112.35 | 0.7390 | 681.0 | 464.7 | |
| 0.45 | 1.52 | 0.33 | 1.12 | -11.23 | 98.85 | -44.35 | 112.34 | 0.7435 | 572.2 | 425.0 | |
| 0.00 | 1.34 | 0.00 | 1.00 | -12.07 | 98.68 | -44.52 | 113.31 | 0.7489 | 556.0 | 435.1 | |
| 0.00 | 1.16 | 0.00 | 0.86 | -11.25 | 98.68 | -44.52 | 112.28 | 0.7455 | 309.0 | 268.1 | |
| 0.36 | 1.43 | 0.27 | 1.07 | -12.27 | 98.29 | -44.91 | 113.37 | 0.7538 | 290.8 | 287.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -14.31 | 97.71 | -45.49 | 115.59 | 0.7684 | 578.0 | 567.7 | |
| 1.07 | 4.37 | 0.80 | 3.28 | -11.48 | 98.15 | -45.05 | 112.33 | 0.7521 | 635.4 | 438.4 | |
| 0.98 | 2.32 | 0.74 | 1.76 | -12.56 | 97.87 | -45.33 | 113.54 | 0.7594 | 594.5 | 438.5 | |
| 0.36 | -20.00 | 0.27 | -20.00 | -11.63 | 97.94 | -45.26 | 112.42 | 0.7549 | 460.5 | 999999 | |
| 0.36 | 1.34 | 0.27 | 1.02 | -12.68 | 97.58 | -45.62 | 113.55 | 0.7629 | 381.0 | 292.4 | |
| 0.00 | 1.70 | 0.00 | 1.31 | -13.76 | 97.31 | -45.89 | 114.74 | 0.7701 | 712.0 | 569.6 | |
| 0.00 | 1.25 | 0.00 | 0.96 | -13.48 | 97.30 | -45.90 | 114.39 | 0.7691 | 730.0 | 630.8 | |
| 0.00 | 1.96 | 0.00 | 1.45 | -9.75 | 98.09 | -45.11 | 110.13 | 0.7459 | 203.0 | 233.3 | |
| 0.27 | 11.69 | 0.22 | 9.41 | -16.71 | 96.32 | -46.88 | 117.75 | 0.7922 | 457.3 | 389.3 | |
| 6.25 | -27.00 | 5.03 | -27.00 | -16.41 | 96.37 | -46.83 | 117.43 | 0.7905 | 744.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.85 | -15.41 | 96.63 | -46.57 | 116.38 | 0.7837 | 537.0 | 377.2 | |
| 0.00 | 2.41 | 0.00 | 1.85 | -11.94 | 96.99 | -46.21 | 112.37 | 0.7661 | 602.0 | 480.6 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -12.96 | 96.61 | -46.59 | 113.45 | 0.7739 | -451.0 | -478.7 | |
| 0.00 | 2.59 | 0.00 | 2.14 | -17.17 | 95.33 | -47.87 | 117.80 | 0.8033 | 308.0 | 286.1 | |
| 0.00 | 1.07 | 0.00 | 0.82 | -11.77 | 96.80 | -46.40 | 112.08 | 0.7673 | 681.0 | 631.4 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -11.94 | 96.67 | -46.53 | 112.23 | 0.7693 | 342.0 | 305.6 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -11.79 | 96.62 | -46.58 | 112.02 | 0.7693 | 377.0 | 389.0 | |
| 0.00 | 2.94 | 0.00 | 2.29 | -12.16 | 96.35 | -46.85 | 112.36 | 0.7734 | 321.0 | 262.5 | |
| 2.59 | 43.00 | 2.08 | 34.62 | -14.10 | 95.44 | -47.76 | 114.29 | 0.7900 | 703.2 | 88.0 | |
| 0.98 | 2.14 | 0.77 | 1.68 | -12.21 | 95.89 | -47.31 | 112.21 | 0.7783 | 255.2 | 192.1 | |
| 1.96 | -37.00 | 1.59 | -37.00 | -14.34 | 95.28 | -47.92 | 114.50 | 0.7925 | 715.5 | 999999 | |
| 0.36 | -37.00 | 0.29 | -37.00 | -13.66 | 95.38 | -47.82 | 113.73 | 0.7889 | -716.8 | 999999 | |
| 3.12 | 8.92 | 2.70 | 7.70 | -18.12 | 93.67 | -49.53 | 118.12 | 0.8219 | -612.2 | -573.6 | |
| 0.00 | 1.07 | 0.00 | 0.86 | -13.42 | 95.16 | -48.04 | 113.36 | 0.7901 | -742.0 | -634.5 | |
| 0.00 | 1.78 | 0.00 | 1.40 | -11.41 | 95.57 | -47.63 | 111.11 | 0.7786 | 520.0 | 416.4 | |
| 1.78 | 481.31 | 1.46 | 409.29 | -14.37 | 94.71 | -48.49 | 114.28 | 0.7981 | 324.8 | -353.1 | |
| 0.36 | 1.25 | 0.28 | 0.98 | -10.95 | 95.39 | -47.81 | 110.48 | 0.7788 | 410.8 | 313.9 | |
| 3.03 | -44.00 | 2.50 | -44.00 | -14.59 | 94.40 | -48.80 | 114.40 | 0.8018 | 480.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.16 | -17.79 | 93.30 | -49.90 | 117.59 | 0.8239 | -598.0 | -521.7 | |
| 0.00 | 4.28 | 0.00 | 3.39 | -11.17 | 95.11 | -48.09 | 110.63 | 0.7824 | -285.0 | -124.0 | |
| 0.00 | 2.23 | 0.00 | 1.76 | -10.85 | 95.14 | -48.06 | 110.26 | 0.7810 | 149.0 | 36.0 | |
| 0.00 | 1.16 | 0.00 | 1.00 | -16.82 | 93.18 | -50.02 | 116.44 | 0.8214 | -677.0 | -558.8 | |
| 0.00 | 1.25 | 0.00 | 1.09 | -17.37 | 92.92 | -50.28 | 116.95 | 0.8257 | -676.0 | -666.7 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -17.13 | 92.76 | -50.44 | 116.60 | 0.8261 | -615.0 | -463.7 | |
| 9.90 | -44.00 | 8.38 | -44.00 | -15.04 | 93.39 | -49.81 | 114.50 | 0.8129 | 325.2 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -10.90 | 94.29 | -48.91 | 109.98 | 0.7898 | -472.0 | -553.3 | |
| 2.05 | -44.00 | 1.75 | -44.00 | -14.95 | 93.08 | -50.12 | 114.26 | 0.8154 | -845.0 | 999999 | |
| 0.45 | 2.41 | 0.36 | 1.95 | -10.80 | 93.74 | -49.46 | 109.64 | 0.7948 | -745.0 | -485.5 | |
| 11.24 | 57.54 | 9.31 | 47.42 | -12.23 | 93.34 | -49.86 | 111.19 | 0.8035 | -848.5 | -594.5 | |
| 62.72 | -44.00 | 53.70 | -44.00 | -14.35 | 92.59 | -50.61 | 113.37 | 0.8178 | -1068.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.08 | -8.92 | 93.66 | -49.54 | 107.34 | 0.7897 | -488.0 | -421.6 | |
| 4.01 | -44.00 | 3.51 | -44.00 | -14.90 | 91.96 | -51.24 | 113.74 | 0.8254 | -689.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -11.95 | 92.64 | -50.56 | 110.59 | 0.8093 | -234.0 | -269.3 | |
| 0.00 | 1.96 | 0.00 | 1.64 | -11.76 | 92.64 | -50.56 | 110.37 | 0.8087 | -493.0 | -336.5 | |
| 0.00 | 9.19 | 0.00 | 8.25 | -14.46 | 90.58 | -52.62 | 112.70 | 0.8362 | -367.0 | -358.3 | |
| 0.00 | 2.50 | 0.00 | 2.13 | -11.01 | 91.60 | -51.60 | 109.10 | 0.8163 | -533.0 | -418.6 | |
| 0.45 | 9.72 | 0.41 | 8.85 | -14.51 | 90.15 | -53.05 | 112.59 | 0.8401 | -88.4 | 220.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
