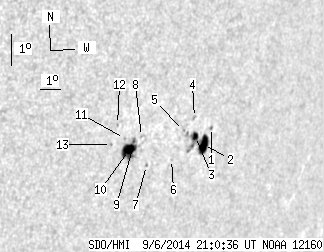

SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.49 | 63.06 | 26.25 | 52.61 | -9.40 | 194.34 | 51.14 | 252.62 | 0.8068 | 38.7 | 240.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 1.17 | -9.08 | 196.28 | 53.08 | 253.66 | 0.8248 | 354.0 | 281.1 | |
| 12.67 | 30.78 | 11.00 | 26.53 | -9.58 | 195.98 | 52.78 | 252.98 | 0.8233 | 477.2 | 499.6 | |
| 3.57 | -2.00 | 3.06 | -2.00 | -9.28 | 195.51 | 52.31 | 253.18 | 0.8181 | 716.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.52 | -8.67 | 195.33 | 52.13 | 253.84 | 0.8147 | 587.0 | 496.2 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -9.03 | 194.86 | 51.66 | 253.26 | 0.8111 | 625.0 | 580.1 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -9.89 | 194.44 | 51.24 | 252.09 | 0.8095 | 141.0 | 137.8 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -9.96 | 193.24 | 50.04 | 251.58 | 0.7979 | 536.0 | 516.1 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -9.01 | 192.81 | 49.61 | 252.58 | 0.7907 | -222.0 | -156.2 | |
| 0.98 | 22.84 | 0.79 | 18.26 | -9.13 | 192.51 | 49.31 | 252.31 | 0.7880 | -634.3 | -122.5 | |
| 14.27 | -9.00 | 11.40 | -9.00 | -9.39 | 192.27 | 49.07 | 251.91 | 0.7864 | -513.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.78 | -8.99 | 192.01 | 48.81 | 252.31 | 0.7825 | -607.0 | -518.4 | |
| 0.00 | 0.89 | 0.00 | 0.70 | -8.51 | 191.60 | 48.40 | 252.75 | 0.7767 | -545.0 | -507.6 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -9.12 | 191.43 | 48.23 | 251.93 | 0.7769 | -590.0 | -527.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
