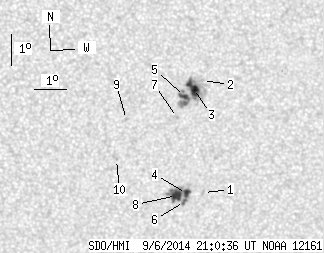

SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.82 | 75.93 | 15.51 | 40.79 | -14.57 | 149.33 | 6.13 | 195.67 | 0.3867 | 54.0 | 84.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 21:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.02 | -16.54 | 149.95 | 6.75 | 195.63 | 0.4198 | -747.0 | -646.6 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -12.89 | 149.81 | 6.61 | 198.08 | 0.3630 | 209.0 | 240.4 | |
| 10.97 | 42.56 | 5.84 | 22.66 | -13.14 | 149.53 | 6.33 | 197.17 | 0.3655 | 1172.1 | 544.6 | |
| 3.84 | 27.03 | 2.09 | 14.73 | -16.57 | 149.41 | 6.21 | 194.42 | 0.4180 | -1026.4 | -844.0 | |
| 3.84 | -3.00 | 2.04 | -3.00 | -13.40 | 149.26 | 6.06 | 196.26 | 0.3682 | 1003.1 | 999999 | |
| 1.52 | -4.00 | 0.83 | -4.00 | -16.83 | 149.36 | 6.16 | 194.14 | 0.4219 | -749.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -14.07 | 149.06 | 5.86 | 195.25 | 0.3779 | 814.0 | 571.7 | |
| 8.65 | -4.00 | 4.71 | -4.00 | -16.63 | 149.10 | 5.90 | 193.68 | 0.4177 | -1124.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -14.12 | 147.46 | 4.26 | 191.20 | 0.3727 | 938.0 | 617.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -15.42 | 147.17 | 3.97 | 189.84 | 0.3926 | -936.0 | -796.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
