SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.43 | 144.81 | 35.65 | 206.36 | -14.51 | 209.25 | 66.61 | 251.49 | 0.9378 | 321.8 | 123.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

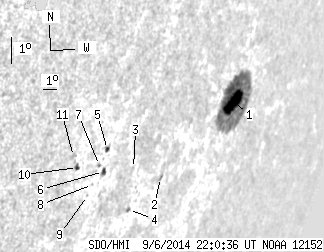

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.68 | 127.59 | 31.69 | 187.49 | -14.39 | 209.98 | 67.34 | 251.81 | 0.9423 | 544.1 | 152.9 | |
| 0.00 | 2.41 | 0.00 | 3.00 | -16.28 | 205.60 | 62.96 | 248.71 | 0.9193 | 346.0 | 350.1 | |
| 0.00 | 1.07 | 0.00 | 1.23 | -15.74 | 203.49 | 60.85 | 248.67 | 0.9042 | -404.0 | -277.6 | |
| 0.00 | 1.87 | 0.00 | 2.22 | -17.12 | 203.90 | 61.26 | 247.33 | 0.9099 | -443.0 | -353.9 | |
| 1.07 | 2.41 | 1.14 | 2.57 | -14.90 | 201.46 | 58.81 | 248.95 | 0.8877 | -338.2 | -282.1 | |
| 1.52 | 2.68 | 1.64 | 2.89 | -15.61 | 201.54 | 58.89 | 248.20 | 0.8900 | -228.6 | -95.8 | |
| 0.00 | 0.89 | 0.00 | 0.95 | -15.38 | 201.19 | 58.54 | 248.34 | 0.8869 | -592.0 | -550.2 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -15.98 | 201.04 | 58.39 | 247.65 | 0.8872 | -481.0 | -474.0 | |
| 0.00 | 0.62 | 0.00 | 0.67 | -16.32 | 200.90 | 58.25 | 247.23 | 0.8870 | -338.0 | -315.1 | |
| 1.16 | 2.59 | 1.18 | 2.64 | -15.29 | 199.85 | 57.20 | 248.00 | 0.8764 | -581.2 | -510.5 | |
| 0.00 | 2.41 | 0.00 | 2.42 | -14.90 | 199.45 | 56.80 | 248.30 | 0.8723 | -159.0 | -212.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
