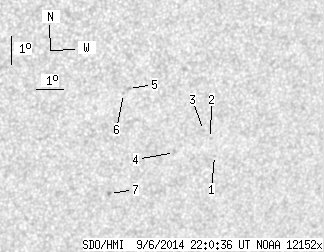

SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.56 | 0.00 | 5.47 | -21.55 | 169.31 | 26.66 | 221.63 | 0.6303 | 578.1 | 523.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.47 | -22.27 | 171.58 | 28.93 | 223.11 | 0.6573 | 184.0 | 239.5 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -21.67 | 171.29 | 28.65 | 223.52 | 0.6493 | 476.0 | 444.6 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -21.37 | 170.97 | 28.32 | 223.54 | 0.6437 | 710.0 | 605.5 | |
| 0.00 | 1.87 | 0.00 | 1.21 | -22.07 | 170.05 | 27.40 | 221.83 | 0.6419 | 580.0 | 512.8 | |
| 0.00 | 1.70 | 0.00 | 1.05 | -19.75 | 167.95 | 25.30 | 222.26 | 0.6004 | 568.0 | 550.1 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -19.91 | 167.80 | 25.15 | 221.90 | 0.6006 | 786.0 | 530.9 | |
| 0.00 | 1.70 | 0.00 | 1.09 | -23.36 | 167.94 | 25.29 | 218.21 | 0.6363 | 743.0 | 608.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
