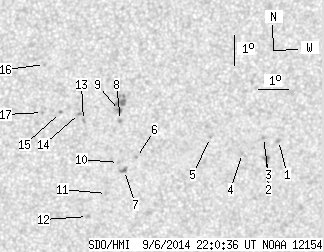

SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.33 | 43.82 | 0.75 | 24.69 | -16.99 | 157.66 | 15.01 | 211.20 | 0.4785 | -19.9 | 256.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.29 | -17.34 | 162.09 | 19.45 | 217.83 | 0.5202 | 849.0 | 656.0 | |
| 0.00 | 4.19 | 0.00 | 2.44 | -17.92 | 161.76 | 19.11 | 216.64 | 0.5240 | 984.0 | 747.7 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -17.21 | 161.58 | 18.93 | 217.24 | 0.5141 | 835.0 | 689.9 | |
| 0.00 | 1.61 | 0.00 | 0.93 | -17.72 | 160.93 | 18.28 | 215.68 | 0.5143 | 819.0 | 527.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.14 | 159.81 | 17.16 | 214.67 | 0.4976 | 800.0 | 598.0 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -17.71 | 157.42 | 14.77 | 210.15 | 0.4855 | -791.0 | -672.6 | |
| 0.62 | 3.39 | 0.35 | 1.92 | -18.13 | 157.06 | 14.41 | 209.10 | 0.4883 | -851.6 | -724.0 | |
| 0.00 | 1.52 | 0.00 | 0.85 | -16.46 | 156.80 | 14.15 | 210.47 | 0.4643 | 834.0 | 773.5 | |
| 0.71 | 15.88 | 0.40 | 8.83 | -16.13 | 156.74 | 14.10 | 210.75 | 0.4595 | 1009.1 | 759.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -17.86 | 156.84 | 14.19 | 209.02 | 0.4831 | -809.0 | -658.9 | |
| 0.00 | 1.70 | 0.00 | 0.96 | -18.89 | 156.53 | 13.88 | 207.45 | 0.4945 | -742.0 | -629.1 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -19.64 | 155.97 | 13.32 | 205.79 | 0.5009 | -768.0 | -606.4 | |
| 0.00 | 1.61 | 0.00 | 0.89 | -16.42 | 155.60 | 12.95 | 208.34 | 0.4547 | -945.0 | -691.6 | |
| 0.00 | 1.70 | 0.00 | 0.94 | -16.19 | 155.45 | 12.81 | 208.33 | 0.4504 | -605.0 | -521.7 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -16.14 | 154.84 | 12.19 | 207.22 | 0.4453 | -806.0 | -654.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -14.55 | 154.23 | 11.59 | 207.79 | 0.4188 | 606.0 | 552.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -16.12 | 154.26 | 11.61 | 206.12 | 0.4410 | -877.0 | -743.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
