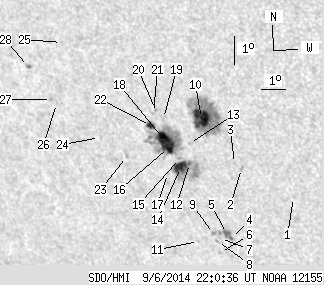

SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.46 | 239.56 | 46.44 | 164.64 | -19.67 | 107.36 | -35.28 | 128.39 | 0.6963 | 747.8 | 452.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 22:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.53 | -21.26 | 111.28 | -31.37 | 133.49 | 0.6710 | 596.0 | 451.8 | |
| 0.00 | 1.52 | 0.00 | 1.02 | -20.40 | 109.50 | -33.15 | 130.96 | 0.6810 | 690.0 | 635.4 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -20.25 | 109.26 | -33.38 | 130.59 | 0.6821 | 543.0 | 496.9 | |
| 0.80 | 9.28 | 0.56 | 6.51 | -22.88 | 108.44 | -34.21 | 132.93 | 0.7098 | 673.6 | 683.2 | |
| 2.59 | -4.00 | 1.81 | -4.00 | -22.72 | 108.29 | -34.36 | 132.63 | 0.7099 | 847.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -23.41 | 107.84 | -34.80 | 133.05 | 0.7191 | 466.0 | 418.5 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -22.91 | 107.99 | -34.65 | 132.62 | 0.7140 | 578.0 | 528.8 | |
| 0.00 | 1.43 | 0.00 | 1.01 | -23.03 | 107.84 | -34.81 | 132.62 | 0.7163 | 458.0 | 401.9 | |
| 0.00 | 1.34 | 0.00 | 0.94 | -22.76 | 107.76 | -34.89 | 132.26 | 0.7150 | 686.0 | 638.7 | |
| 22.93 | 89.58 | 15.46 | 60.22 | -18.80 | 108.33 | -34.31 | 128.10 | 0.6805 | 999.7 | 527.2 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -23.09 | 107.06 | -35.59 | 132.08 | 0.7237 | 533.0 | 445.9 | |
| 1.25 | 41.93 | 0.86 | 29.15 | -20.38 | 107.47 | -35.18 | 129.32 | 0.7003 | 912.5 | 383.1 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -19.69 | 107.65 | -35.00 | 128.64 | 0.6937 | 576.0 | 493.9 | |
| 11.51 | -12.00 | 8.02 | -12.00 | -20.55 | 107.07 | -35.58 | 129.20 | 0.7054 | 807.7 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.99 | -20.24 | 107.11 | -35.54 | 128.88 | 0.7028 | 846.0 | 655.0 | |
| 10.62 | 76.19 | 7.38 | 52.90 | -19.90 | 106.77 | -35.88 | 128.21 | 0.7037 | 951.5 | 438.9 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -20.80 | 106.48 | -36.17 | 129.05 | 0.7127 | 367.0 | 234.9 | |
| 13.03 | -16.00 | 9.04 | -16.00 | -19.60 | 106.65 | -36.00 | 127.77 | 0.7028 | 1081.5 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.17 | -18.92 | 106.82 | -35.83 | 127.08 | 0.6964 | 559.0 | 281.0 | |
| 0.00 | 1.16 | 0.00 | 0.80 | -18.64 | 106.57 | -36.07 | 126.56 | 0.6969 | 510.0 | 535.2 | |
| 0.00 | 1.52 | 0.00 | 1.05 | -18.75 | 106.47 | -36.18 | 126.61 | 0.6987 | 531.0 | 523.5 | |
| 4.19 | -16.00 | 2.92 | -16.00 | -19.20 | 106.23 | -36.41 | 126.98 | 0.7041 | 627.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.09 | -20.34 | 104.95 | -37.70 | 127.41 | 0.7242 | 711.0 | 615.5 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -19.78 | 104.01 | -38.64 | 126.10 | 0.7296 | 604.0 | 563.4 | |
| 0.00 | 0.89 | 0.00 | 0.63 | -16.69 | 103.28 | -39.37 | 121.91 | 0.7181 | -672.0 | -510.2 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -18.77 | 102.51 | -40.13 | 123.93 | 0.7379 | -556.0 | -467.2 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -18.65 | 102.34 | -40.31 | 123.68 | 0.7389 | -636.0 | -526.5 | |
| 0.54 | 1.70 | 0.39 | 1.24 | -17.61 | 101.67 | -40.98 | 122.03 | 0.7396 | -693.0 | -588.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
