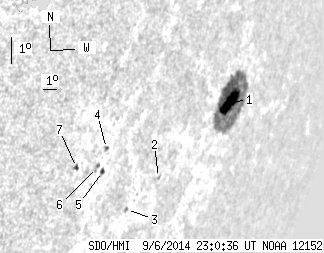

SDO HMI 2014-09-06 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.31 | 136.16 | 32.26 | 199.95 | -14.48 | 209.33 | 67.23 | 251.67 | 0.9414 | 364.7 | 114.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.63 | 122.42 | 29.40 | 184.58 | -14.38 | 209.93 | 67.83 | 251.94 | 0.9450 | 521.2 | 144.6 | |
| 0.00 | 1.70 | 0.00 | 2.16 | -16.28 | 205.62 | 63.52 | 248.87 | 0.9228 | 384.0 | 336.5 | |
| 0.00 | 1.96 | 0.00 | 2.37 | -17.11 | 203.89 | 61.79 | 247.50 | 0.9134 | -510.0 | -372.6 | |
| 0.45 | 2.05 | 0.48 | 2.23 | -14.86 | 201.45 | 59.35 | 249.16 | 0.8916 | -352.6 | -309.8 | |
| 1.16 | 2.59 | 1.27 | 2.84 | -15.61 | 201.55 | 59.45 | 248.38 | 0.8941 | -233.3 | -200.6 | |
| 0.00 | 2.94 | 0.00 | 3.18 | -15.44 | 201.16 | 59.06 | 248.44 | 0.8908 | -555.0 | -499.6 | |
| 1.07 | 2.50 | 1.11 | 2.59 | -15.29 | 199.82 | 57.73 | 248.18 | 0.8805 | -542.4 | -457.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
