SDO HMI 2014-09-06 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.86 | 39.17 | 17.51 | 52.53 | -20.68 | 78.51 | -63.58 | 115.71 | 0.9303 | 44.1 | -25.4 | |
|
previous
or next observation for the same group /

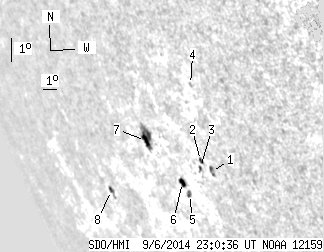

back to the solar disc SDO HMI 2014-09-06 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.75 | 0.00 | 4.39 | -20.58 | 82.29 | -59.81 | 116.77 | 0.9081 | 641.0 | 509.1 | |
| 0.98 | 2.14 | 1.17 | 2.54 | -20.27 | 81.77 | -60.33 | 116.27 | 0.9107 | 502.1 | 380.9 | |
| 0.45 | 2.23 | 0.54 | 2.68 | -20.52 | 81.60 | -60.49 | 116.48 | 0.9123 | 390.6 | 302.0 | |
| 0.00 | 1.25 | 0.00 | 1.40 | -17.66 | 82.70 | -59.40 | 113.82 | 0.8984 | 596.0 | 525.2 | |
| 1.16 | 3.12 | 1.49 | 4.00 | -21.61 | 80.09 | -62.01 | 117.12 | 0.9240 | 549.2 | 424.8 | |
| 3.39 | 4.82 | 4.36 | 6.19 | -21.23 | 79.88 | -62.21 | 116.66 | 0.9244 | 141.7 | 51.7 | |
| 5.18 | 16.95 | 7.00 | 22.78 | -20.03 | 78.11 | -63.98 | 114.90 | 0.9324 | -428.1 | -403.9 | |
| 1.70 | 4.91 | 2.95 | 8.55 | -22.28 | 73.31 | -68.78 | 115.88 | 0.9600 | 130.6 | 32.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
