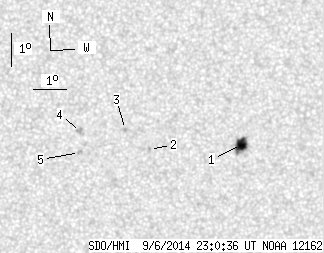

SDO HMI 2014-09-06 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.42 | 25.26 | 5.68 | 12.54 | 8.85 | 144.86 | 2.77 | 217.54 | 0.0632 | -420.6 | 229.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-06 23:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.42 | 15.44 | 5.68 | 7.67 | 8.76 | 146.58 | 4.49 | 289.00 | 0.0821 | -1128.2 | -705.2 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 8.63 | 143.77 | 1.67 | 309.85 | 0.0377 | -857.0 | -754.5 | |
| 0.00 | 1.61 | 0.00 | 0.80 | 9.24 | 143.03 | 0.94 | 334.96 | 0.0384 | 1036.0 | 798.2 | |
| 0.00 | 4.82 | 0.00 | 2.39 | 9.18 | 141.66 | -0.44 | 12.68 | 0.0346 | 1226.0 | 840.3 | |
| 0.00 | 2.14 | 0.00 | 1.06 | 8.55 | 141.63 | -0.47 | 19.78 | 0.0240 | 932.0 | 758.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
