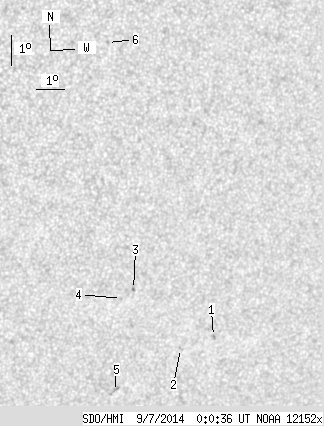

SDO HMI 2014-09-07 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.99 | 0.00 | 6.35 | -20.77 | 168.69 | 27.15 | 223.21 | 0.6271 | 654.8 | 521.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-07 00:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 1.06 | -21.64 | 171.31 | 29.76 | 224.61 | 0.6593 | 702.0 | 598.3 | |
| 0.00 | 1.78 | 0.00 | 1.16 | -21.97 | 170.15 | 28.60 | 223.13 | 0.6518 | 702.0 | 534.2 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -19.82 | 168.00 | 26.46 | 223.43 | 0.6120 | 635.0 | 522.5 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -20.10 | 167.62 | 26.08 | 222.69 | 0.6111 | 597.0 | 425.9 | |
| 0.00 | 3.03 | 0.00 | 1.96 | -23.33 | 168.00 | 26.46 | 219.48 | 0.6457 | 661.0 | 516.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -11.61 | 166.00 | 24.45 | 232.39 | 0.5139 | 632.0 | 499.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
